| Swing | 30" | 762 mm |
| Machining Length | 34" | 863.6 mm |
| # Axis | 2 | 2 |
| Chuck Size | 4" | 101.6 mm |
| Bar Capacity | 4" | 101.6 mm |
| Power | 40 hp | 29.8 kW |
| Max RPM | 2,400 RPM | 2,400 RPM |
| Turning Dia | 16" | 406.4 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Dimensions | 162 x 77 | 162 x 77 |
| Weight | 16000 | 16000 |

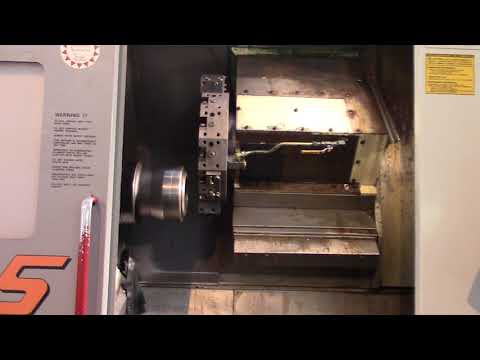

#SL30TB HAAS "BIG-BORE" CNC TURNING CENTER
NEW NOVEMBER 2001, SERIAL NO 64571, MODEL SL30TB
EQUIPPED WITH:
Haas CNC Control
4" Big Bore Drive System
Collet Chuck - 12-Position Turret
Programmable Hydraulic Tailstock
Coolant System & Chip Conveyor
Tool Presetter
CATALOG SPECIFICATIONS:
Spindle Bore 4"
Bar Capacity, Maximum 4"
Swing Over Apron, Maximum 30"
Swing Over Cross Slide 14.5"
Maximum Cutting Diameter 16"
Between Centers 39"
Maximum Cutting Length 34"
Spindle Nose A2-8
X-Axis Cross Slide Travel 11.3"
Z-Axis Carriage Travel 34"
X-Axis Rapid Traverse 710 IPM
Z-Axis Rapid Traverse 710 IPM
Spindle Speeds, Range to 2400 RPM
Spindle Motor, Horsepower 40 HP
Overall Dimensions, L x W 162" x 77"
Overall Height 74"
Weight Approximately 16,000 LBS
PRICE: F.O.B. OUR WAREHOUSE
