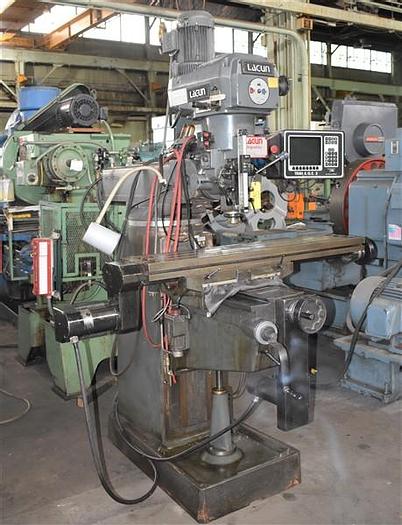

#FTV-2 LAGUN/REPUBLIC "PROTO-TRAK" CNC VERTICAL MILL
#FTV-2 LAGUN/REPUBLIC "PROTO-TRAK" CNC VERTICAL MILL
$8,250 (USD)
Description
#FTV-2 LAGUN/REPUBLIC "PROTO-TRAK" CNC VERTICAL MILL NEW 1998, MODEL FTV-2 EQUIPPED WITH: SWI TRAK A.G.E. 2 CNC CONTROLS 3 HP VARIABLE SPEED SPINDLE MOTOR POWER FEED TO TABLE POWER DOWN-FEED TO QUILL ONE SHOT LUBE SYSTEM PRICE: F.O.B. OUR WAREHOUSE
Specifications
| Model | FTV-2 |
| Year | 1998 |
| Condition | Used |
| Stock Number | 28980 |
| Table dimensions (overall), w x l | 10" X 50" |
| Table longitudinal travel (x-axis) | 30" |
| Saddle cross travel (y-axis) | 16" |
| Knee vertical travel (z-axis) | 16" |
| Quill travel | 5" |
| Ram travel | 22.19" |
| Spindle-center to body, minimum | 5.31" |
| Spindle-center to body, maximum | 30.5" |
| Spindle-nose to table, maximum | 18.5" |
| Quill, diameter | 3.375" |
| Spindle speeds, range | 55 TO 4250 RPM |
| Spindle motor, horsepower/rpm | 3 HP/1730 RPM |
| Electrical system | 220-440/3/60 |
| Floor space required, w x d | 5'3" X 4'11" |
| Overall height | 5'10" |
| Weight, approximately | 2850 LBS |
