2-SPINDLE AVEY MULTIPLE-SPINDLE DRILL

2-SPINDLE AVEY MULTIPLE-SPINDLE DRILL

$3,950 (USD)

orCall +1 513-771-1952

Description

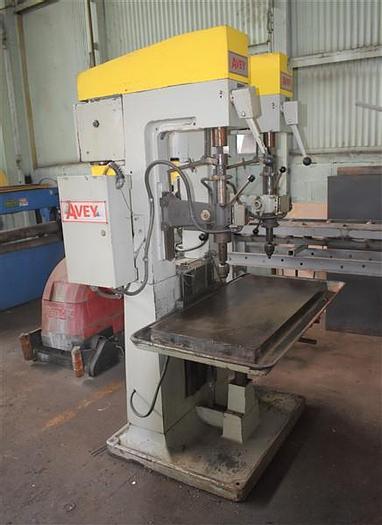

2-SPINDLE AVEY MULTIPLE-SPINDLE DRILL

New 1989, Serial No A89052, Model 2BMA6



EQUIPPED WITH:

2 HP Motor Drives to Both Spindles

Manual Down-Feed To Both Spindles

Manual Table Adjustment

(2) Jacobs Chucks

Coolant Pump (Built-In)



CATALOG SPECIFICATIONS:

Number of Spindles..................... 2-SPINDLE

Spindle-Head Travel, Vertical.......... 7"

Spindle-Center Distance................ 24"

Spindle-Center to Column............... 14"

Swing to Center of Circle, Maximum..... 28"

Table Working Surface, W x L........... 22" x 46"

Spindle Taper.......................... #2 MT

Spindle Speeds, Range.................. 250 to 3000 RPM

Spindle Motor, Horsepower/RPM.......... 2 HP/1165 RPM

Weight, Approximately.................. 2500 LBS

PRICE: F.O.B. OUR WAREHOUSE

Specifications

Model2BMA6
Year1989
ConditionUsed
Serial NumberA89052
Stock Number28565
Number of spindles2-SPINDLE
Spindle-head travel, vertical7"
Spindle-center distance24"
Spindle-center to column14"
Swing to center of circle, maximum28"
Table working surface, w x l22" X 46"
Spindle taper#2 MT
Spindle speeds, range250 TO 3000 RPM
Spindle motor, horsepower/rpm2 HP/1165 RPM
Weight, approximately2500 LBS
