4'9" MEUSER "M35R" RADIAL DRILL w/Box Table

4'9" MEUSER "M35R" RADIAL DRILL w/Box Table

$5,950 (USD)

orCall 513-771-1952

Description

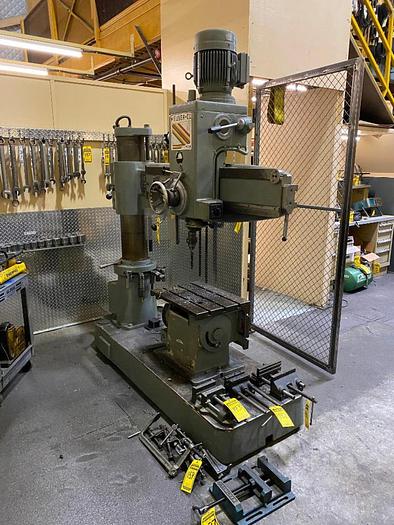

4'9" MEUSER RADIAL DRILL

Serial No M35R-39567, Model M35R


EQUIPPED WITH:

Universal Box Table

Plain-Type Base

Built In Coolant System


CATALOG SPECIFICATIONS:

Arm Length 4'

Column Diameter 9"

Drilling Capacity, Mild Steel 1.5"

Drilling Capacity, Mild Steel

with 1/2" Pre-Drilled Hole 2.5"

Vertical Spindle Travel in Head 9"

Spindle-Nose to Base, Minimum 15"

Spindle-Nose to Base, Maximum 46"

Spindle Taper # MT

(12) Spindle Speeds, Range 60 to 2700 RPM

(6) Spindle Feeds, Range .0016 to .016 IPR

Main Motor, Horsepower/RPM 4 HP

Arm Elevation Motor, Horsepower/RPM 1.5 HP

Dimensions   4' x 7'11"

Height, Maximum  11'

Weight, Approximately 5,500 LBS


F.O.B. ON WAY IN


Specifications

ManufacturerMEUSER
ModelM35R
ConditionUsed
Serial NumberM35R39567
Stock Number29461
