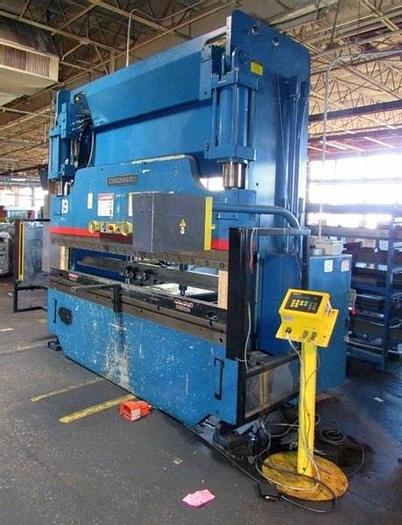

10' CINCINNATI-INC 90-TON "COST BREAKER" CNC HYDRAULIC PRESS BRAKE
Description
10' CINCINNATI-INC 90-TON "COST BREAKER" CNC HYDRAULIC PRESS BRAKE NEW 1998, SERIAL NO 50558, MODEL 90CBIIX8FT, SERIES COST BREAKER EQUIPPED WITH: CINCINNATI-INC FRONT OPERATED CNC BACK GAUGE OPERATOR CONTROL STAND W/RAM UP & DOWN & FOOT PEDAL MERLIN LIGHT CURTAINS PRICE: F.O.B. OUR WAREHOUSE
Specifications
| Model | 90CBIIX8FT |
| Year | 1998 |
| Condition | Used |
| Serial Number | 50558.0 |
| Stock Number | 29434 |
| Tonnage capacity, medium or low speed | 90 TON |
| Tonnage capacity, high form speed | 67 TON |
| Overall length of bed and ram | 10' |
| Distance between housings | 8'6-1/2" |
| Bending capacity | 6'10' X 3/16" |
| Bending capacityl | 5' X 1/4" |
| Stroke length | 14" |
| Open height | 21" |
| Closed height | 7" |
| Throat depth | 7" |
| Ram speed, high approach | 260 IPM |
| Ram speed forming, high | 80 IPM |
| Ram speed forming, medium | 20 IPM |
| Ram speed forming, low | 10 IPM |
| Ram speed, high return | 280 IPM |
| Hydraulic motor, horsepower | 15 HP |
| Weight, approximately | 14300 LBS |
