MODEL NO. 6-10 BARBER COLMAN "MULTICYCLE"

MODEL NO. 6-10 BARBER COLMAN "MULTICYCLE"

$4,950 (USD)

orCall 513-771-1952

Description

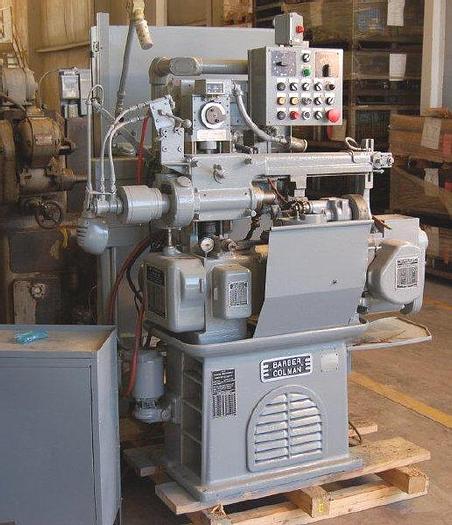

MODEL NO. 6-10 BARBER COLMAN "MULTICYCLE" HORIZONTAL GEAR HOBBER, NEW 1962, SERIAL NO. 4889, MODEL 6-10 "MULTICYCLE" TO VIEW VIDEO: CLICK HERE TO WATCH VIDEO 1 THIS MACHINE IS EQUIPPED WITH THE OPTIONAL 90-DEGREE HOB HEAD USED FOR WORM GEARS. WITH A STANDARD SWIVEL HOB HEAD IT COULD BE USED FOR THE HOBBING OF STRAIGHT SPUR AND HELICAL GEARS, PINIONS, SPLINES AND OTHER WORKPIECES OF SIMILAR PROFILE UP TO 6" (152.4MM) DIAMETER AND 10" (254MM) FACE-WDITH. EQUIPPED WITH: AUXILIARY 90-DEGREE HOB-HEAD FULLY AUTOMATIC CYCLES WITH POWER DOWN-FEED MANUAL HOB-SHIFTING POWER RAPID TRAVERSE FEATURE PNEUMATIC CHUCKING WORK-SPINDLE HOB REVERSING DRUM SWITCH TRIPLE-THREAD INDEX WORM AND GEAR SET FOR WORK-HEAD WITH ANTI-FRICTION BEARING WORK SPINDLE DWELL TIMER FOR BLIND CUTS HARDENED & GROUND BEDWAYS TAILSTOCK WITH LEVER-OPERATED ADJUSTABLE FLAT-CENTER bracket AUTOMATIC POWER FORCED LUBRICATION ASSORTED CHANGE GEARS FOR SPEED, INDEX, AND FEED ONE (1) HOB ARBOR FULL COMPLEMENT OF ELECTRICS, (MOTORS/CONTROLS) FOR 230/260 VOLT, 3-PHASE, 60 HZ OPERATION SELF CONTAINED COOLANT SYSTEM MAXIMUM HOB SWIVEL RANGE MAX. DISTANCE WORK-SPINDLE FACE TO MAX. DISTANCE WORK-SPINDLE FACE TO CENTERLINE MIN. DISTANCE WORK-SPINDLE FACE TO CENTERLINE MAX. DISTANCE CENTERLINE OF WORK-SPINDLE TO MIN. DISTANCE CENTERLINE OF WORK-SPINDLE TO BORE DIAMETER FOR SHAFTS

Specifications

Model6-10 "MULTICYCLE"
Year1962
ConditionUsed
Serial Number4889.0
Stock Number26112
Maximum diameter work-piece6" (152.4MM)
Maximum diametral pitch (module)16 DP (1.6 MODULE)
Maximum hob diameter2.06" (52.39MM)
Maximum length of hob3" (76MM)
Maximum hob swivel rang+/- 45-DEGREES
(90-degree hob-head)+/- 90-DEGREES
Maximum hob-shift travel1.5" (38.1MM)
Tailstock center15.75" (400.05MM)
Of hob-spindle2.25" (57.15MM)
Centerline of hob-spindle0.25" (6.35MM)
Maximum hob slide travel10.5" (266.7MM)
Hob speeds, range133 TO 533 RPM
Feeds, range, inch per revolution.015 TO .150 IPR
Work-spindle overall diameter3.625" (92.075MM)
Counter-bore diameter(44.45/44.4882MM)
12" (304.8mm) length1.5" (38.1MM)
Bolt circle diameter3" (76MM)
Index worm gear pitch diameter5.7" (144.7MM)
Max./min. number of teeth cut300 TO 4 TEETH
Main drive motor2 HP 1200 RPM
Coolant pump moto.25 HP 3600 RPM
Lubrication pump motor1/20 HP 1800 RPM
Machine overall length64.5" (1638MM)
Machine overall width20.07" (510MM)
Machine overall height57" (1447MM)
Machine overall weight, approx2,230 LBS(1,052 KG)
