GLEASON 24A "CONIFLEX" STRAIGHT BEVEL

GLEASON 24A "CONIFLEX" STRAIGHT BEVEL

$59,500 (USD)

orCall 513-771-1952

Description

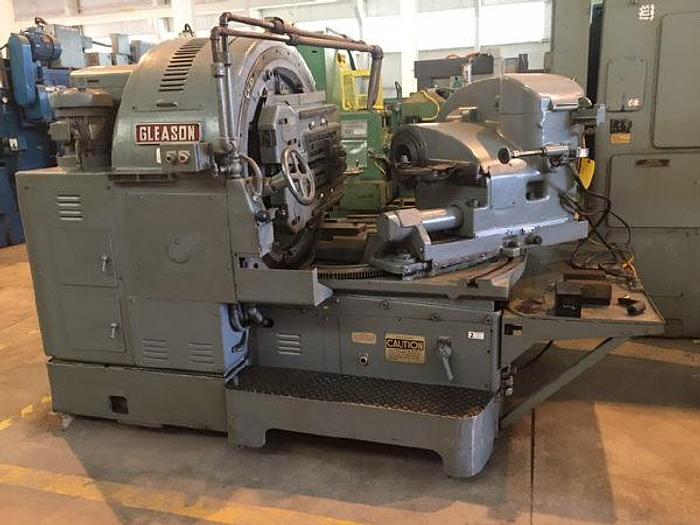

GLEASON 24A "CONIFLEX" STRAIGHT BEVEL GEAR GENERATING MACHINE NEW 1978, SERIAL NUMBER 752801 COMBINATION ROUGHER/FINISHER, SUITABLE FOR "GENERAL JOBBING" PRODUCTION OF STRAIGHT BEVEL (CONIFLEX/CROWN) GEARS UP TO 35.5 (901MM) PITCH DIAMETER, (AT 10:1 RATIO), 6" (125MM) FACE-WIDTH, WITH CUTTING CAPABILITY UP TO 1.25 DP (20.4 MODULE) TO VIEW VIDEO: CLICK HERE TO WATCH VIDEO 1 EQUIPMENT / FEATURES: UNIVERSAL FEED CAM, DOUBLE-TRACK, FOR ROUGHING AND/OR FINISHING WORK HYDRAULIC CHUCKING ATTACHMENT (W/DRAW-BAR & NUT) SELF CONTAINED HYDRAULIC SYSTEM ROUGHING YOKE & BUSHING FINE-FEED ADJUSTMENT FEATURE ONE SET OF TOOL-HOLDERS GLEASON AUTO-STOP GUARDS/COVERS AND OPERATORS STEP PLATFORM MISC. WRENCHES, SPANNERS, OPERATOR'S TOOLS FULL COMPLEMENT OF ELECTRICS (MOTORS/CONTROLS) PRICE: F.O.B. OUR WAREHOUSE

Specifications

Year1978
ConditionUsed
Serial Number752801.0
Stock Number27616
Longest cone distance (1 3/4" stroke)18" (457MM)
Shortest cone distance0"
10 to 1 ratio35.5" (901MM)
2 to 1 ratio31.75" (805MM)
1 to 1 ratio25" (635MM)
Max pitch angle (shafts at 90 deg)84.18 DEGREES
Minimum pitch angle5.42 DEGREES
Extreme ratio10 TO 1
Maximum pitch1.25 DP (20.4 MODULE)
Maximum face length6" (152MM)
Index range10 TO 100 INCLUSIVE
Diameter (large end of taper)6" (152MM)
Taper per foot .75"(18MM)
Depth of taper 6"(152MM)
Diameter of thru bore 5"(127MM)
Spindle nose to machine center5"-26" (127-660MM)
Cutter speeds (strokes per minute)22 TO 170
Feeds (seconds per tooth) (22 feeds)23 TO 645
Floor space required(1880X2660MM)
Machine net weight24,400 LBS(11,295 KGS)
