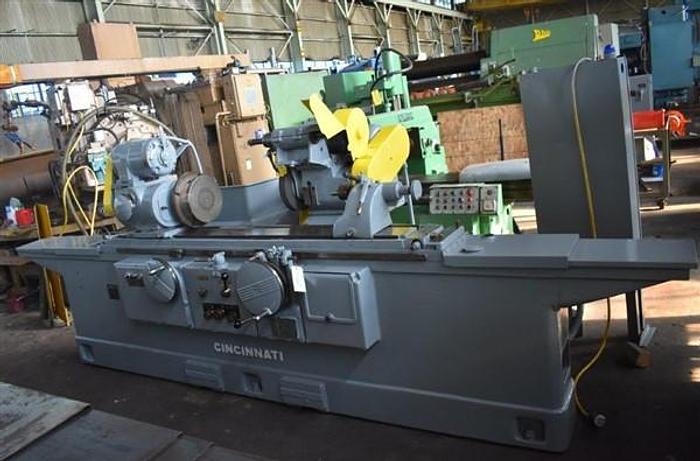

12" X 48" CINCINNATI UNIVERSAL CYLINDRICAL GRINDER
Description
12" X 48" CINCINNATI UNIVERSAL CYLINDRICAL GRINDER SERIAL NO 2U3E5A-7, MODEL ER EQUIPPED WITH: INTERNAL GRINDING SPINDLE ATTACHMENT (SWING-DOWN TYPE) VARIABLE SPEED HEADSTOCK TAILSTOCK (LEVER-TYPE) 12" FACEPLATE W/10" MAGNETIC CHUCK BUILT-IN COOLANT SYSTEM PRICE: F.O.B. OUR WAREHOUSE
Specifications
| Model | ER |
| Condition | Used |
| Serial Number | 2U3E5A-7 |
| Stock Number | 29377 |
| Swing over table, maximum | 12.9375" |
| Grinding diameter w/14" wheel | 12.9375" |
| Distance between centers, nominal | 48" |
| Grinding wheel diameter, standard | 14" |
| Grinding wheel width, standard | 1.5" |
| Grinding wheel hole diameter | 5" |
| Table swivel taper toward wheelhead | 3.5" TPF |
| Table swivel taper away wheelhead | 1" TPF |
| Table swivel angle toward wheelhead | 8.5-DEGREES |
| Table swivel angle away wheelhead | 3-DEGREES |
| Lower grinding wheelhead swivel range | 90-DEGREES |
| Upper grinding wheelhead swivel range | 30-DEGREES |
| Workhead and tailstock center tapers | #9 B&S |
| Workhead spindle speeds, range | 50 TO 500 RPM |
| Table longitudinal feeds, infinite | 3 TO 240 IPM |
| Grinding wheelhead spindle motor | 2 HP |
| Overall dimensions, l x w | 15'4" X 5'2" |
| Weight, approximately | 6700 LBS |
