8" X 24" BROWN & SHARPE "824 MICROMASTER/DIAL-A-SIZE" HYDRAULIC HORIZONTAL-SPINDLE SURFACE GRINDER w/MAGNETIC CHUCK - WHEEL DRESSER

8" X 24" BROWN & SHARPE "MICROMASTER/DIAL-A-SIZE" HYDRAULIC-FEED HORIZONTAL-SPINDLE SURFACE GRINDER
NEW 1983, SERIAL NO 523-824-2340, MODEL 824

EQUIPPED WITH:

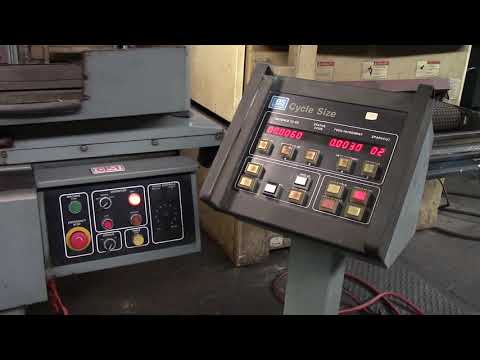

DIAL-A-SIZE FULLY AUTOMATIC PROGRAMMABLE CONTROLLER
W/CYCLE-SIZE AUTOMATIC DOWN FEED
STRAIGHT LINE POWER WHEEL DRESSER W/AUTOMATIC
COMPENSATION
8" X 24" PERMANENT-MAGNETIC CHUCK

CATALOG SPECIFICATIONS:
Table Working Surface, W x L 8" x 24"
Grinding Width Capacity, Maximum 8"
Grinding Length Capacity, Maximum 24"
Height Under 14" Grinding Wheel 13.5"
Table Longitudinal, Power 28"
Table Cross Travel 10"
Grinding Head Vertical Travel 14.75"
Grinding Wheel Diameter, Standard 14"
Grinding Wheel Width, Standard 1"
Grinding Wheel Hole Diameter 5"
Grinding Spindle Speed 1740 RPM
Table Longitudinal Feeds, Range 10 to 125 FPM
Power Rapid Table Traverse 75 FPM
Power Rapid Vertical Traverse 40 FPM
Grinding Wheel Spindle Motor 5 HP/1740 RPM
Hydraulic System Motor 2 HP/1725 RPM
Power Elevation Motor 1/2 HP
Overall Dimensions, L x D 7'5" x 7'2"
Overall Height 5'11"
Weight, Approximately 5500 LBS

NOTE: THE CYCLE-SIZE ARRANGEMENT PROVIDES AUTOMATIC
DOWN FEED OF THE GRINDING WHEEL TO A POSITIVE STOP,
A PRESET SPARK-OUT CYCLE, AND AUTOMATIC RETRACTION
OF THE WHEEL TO THE STARTING POSITION.

PRICE: F.O.B. OUR WAREHOUSE
Table working surface, w x l: 8" X 24"
Grinding width capacity, maximum: 8"
Grinding length capacity, maximum: 24"
Height under 14" grinding wheel: 13.5"
Table longitudinal, power: 28"
Table cross travel: 10"
Grinding head vertical travel: 14.75"
Grinding wheel diameter, standard: 14"
Grinding wheel width, standard: 1"
Grinding wheel hole diameter: 5"
Grinding spindle speed: 1740 RPM
Table longitudinal feeds, range: 10 TO 125 FPM
Power rapid table traverse: 75 FPM
Power rapid vertical traverse: 40 FPM
Grinding wheel spindle motor: 5 HP/1740 RPM
Hydraulic system motor: 2 HP/1725 RPM
Power elevation motor: 1/2 HP
Overall dimensions, l x d: 7'5" X 7'2"
Overall height: 5'11"
Weight, approximately: 5500 LBS
