GLEASON HYPOID BEVEL CUTTER SHARPENER,

GLEASON HYPOID BEVEL CUTTER SHARPENER,

$22,500 (USD)

orCall 513-771-1952

Description

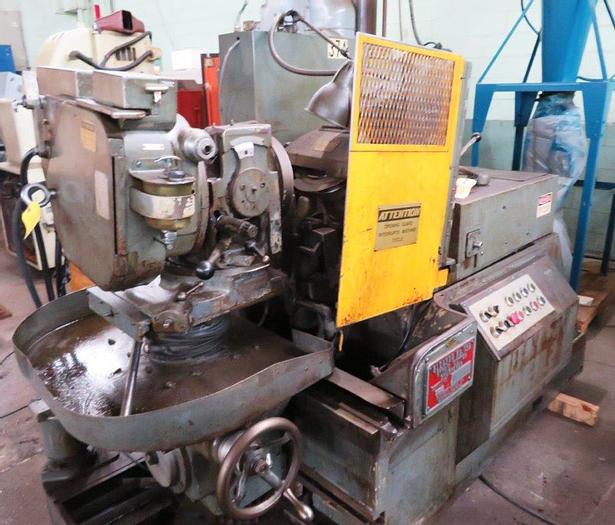

Model No. 13A GLEASON Universal Hypoid Cutter Sharpening Machine

Serial #117302



Suitable for the full automatic sharpening of spiral bevel cutters from

1.3” to 21” diameter, as employed on the GLEASON 5-cut methodology

spiral bevel gear generators, as well as cutters for GLEASON straight bevel

" Revacycle" machines, and disc-type interlocking cutters for 104 and 114

“Coniflex” straight bevel generating machines



EQUIPMENT / FEATURES:

Base machine complete with splash guards, covers

Complete coolant system pump, tank, and piping

One (1) index plate (72-T)

  (additional index plates available at extra cost)

One (1) adaptor for large diameter cutters

“Long-throw” feed cam (1.625” travel)  Part #45620180 for larger diameter cutters

Rotating diamond wheel dresser

Diamond setting gauge

Automatic stop

Self contained hydraulic system

Full complement of electrics (motors/controls)

  for 230/460 volt, 3-phase, 50/60 cycle operation


PRINCIPAL SPECIFICATIONS:

Diameter of spiral bevel cutters …………………………………. 3.5” to 18”         (89 to 457mm)

Diameter of revacycle cutters …………………………………....  16” & 18”           (406, 457mm)

Diameter of Coniflex cutters ……………………………………..    9” & 15”           (229, 381mm)

Stock removed per cycle (roughing) …………………………….   .007"                 (0.18mm)

Stock removed per cycle (finishing) ……………………………..   .002”                 (0.05mm)

Grinding time per blade …………………………………………..    5 seconds

Type of wheel utilized …………………………………………….    Disc-Type 30-degree bevel

Size of wheel ………………………………………………………    12"x .75"           (305x19mm)

Grinding wheel bore diameter .................................................     4"                     (101.6mm)

Wheel drive motor .....................………………………………… 2 HP - 1800 rpm

Feed drive motor .......................………………………..……….   1 HP - 1800 rpm

Coolant pump motor ........................……………………………   .25 HP - 3600 rpm

Hydraulic unit motor ........................…………………………....   2 HP - 1200 rpm

Floor space required ....................………………………………  48"x 91"            (1240x2310mm)

Machine approximate net weight .......………………………….  9,000 Lbs.        (4083 kGs)



PRICE: F.O.B. OUR WAREHOUSE

in condition “As Taken From Service”.......................................................

Specifications

ManufacturerGLEASON
Model13A
ConditionUsed
Serial Number117302
