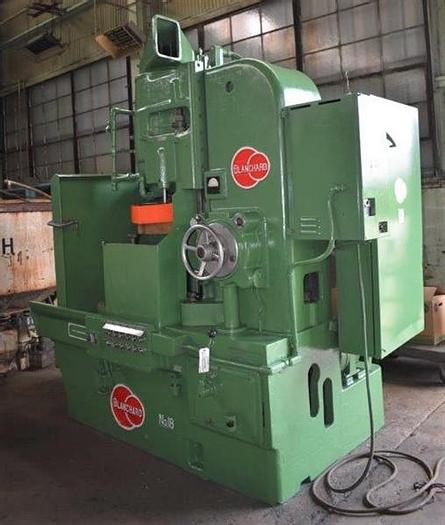

36" BLANCHARD EXTRA-HIGH VERTICAL-SPINDLE ROTARY SURFACE GRINDER
Description
36" BLANCHARD EXTRA-HIGH VERTICAL-SPINDLE ROTARY SURFACE GRINDER SERIAL NO 11032, MODEL 18-36 EQUIPPED WITH: VERTICAL-SPINDLE MACHINE DESIGN
40 HP MOTOR 36" DIAMETER ELECTRO-MAGNETIC CHUCK W/NEUTROFIER 12" EXTRA HIGH COLUMN ALLOWING 23" VERTICAL RANGE SEGMENTED GRINDING WHEEL COOLANT SYSTEM (BUILT-IN)W/SKIMMER AND HYROFLOW FLUID RECYCLING SYSTEM PRICE: F.O.B. OUR WAREHOUSE
Specifications
| Model | 18-36 |
| Condition | Used |
| Serial Number | 11032.0 |
| Stock Number | 29390 |
| Magnetic chuck, diameter | 36" |
| Magnetic chuck work load capacity | 3000 LBS |
| Height under grinding wheel, maximum | 23" |
| Grinding wheel diameter, maximum | 18" |
| Grinding wheel speeds, range | 720 RPM |
| (6) chuck speeds, range | 6 TO 33 RPM |
| Power down feeds, range | .004 TO .080 IPM |
| Electrical system | 220-440/3/60 |
| Overall dimensions, w x d | 9'4" X 5'5" |
| Weight, approximately | 12900 LBS |
| Main motor, horsepower | 40 HP |
