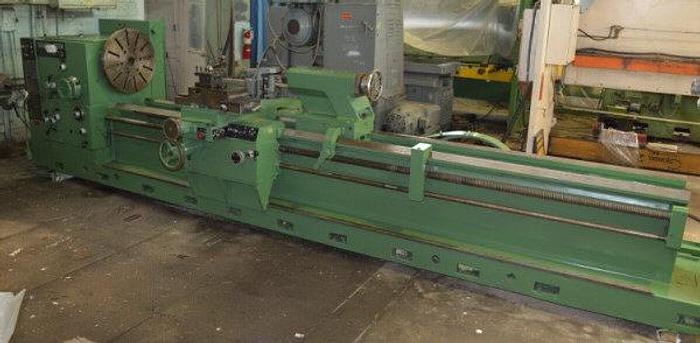

32"/45" X 160" TIMEMASTER "HEAVY-DUTY" GAP-TYPE ENGINE LATHE
32"/45" X 160" TIMEMASTER "HEAVY-DUTY" GAP-TYPE ENGINE LATHE
$24,500 (USD)
Description
32"/45" X 160" TIMEMASTER "HEAVY-DUTY" GAP-TYPE ENGINE LATHE SERIAL NO 3301, MODEL S3222, SERIES "HEAVY-DUTY" EQUIPPED WITH: TAPER ATTACHMENT THREADING (INCH-METRIC) - THREADING DIAL 25" FACEPLATE HARDENED & GROUND BED & CROSS-SLIDE WAYS POWER RAPID TRAVERSE PRICE: F.O.B. OUR WAREHOUSE
Specifications
| Model | S3222 |
| Condition | Used |
| Serial Number | 3301.0 |
| Stock Number | 28023 |
| Hole thru spindle | 5" |
| Swing over bed ways, rated | 32" |
| Swing thru gap | 44.78" |
| Swing over cross-slide | 22" |
| Distance between centers | 160" |
| Gap length | 18" |
| Compound-rest travel | 12" |
| Cross-slide travel | 22" |
| Tailstock, quill diameter | 4.75" |
| Tailstock, quill travel | 16.5" |
| Tailstock, spindle taper | #6 MT |
| (24) spindle speeds, range | 11 TO 800 RPM |
| (264) carriage longitudinal feeds | .0015 TO .205 IPR |
| (264) cross feeds, range | .0008 TO .102 IPR |
| (66) thread changes, range" | 27/32 TO 52 TPI |
| (66) metric threads, range | 1 TO 52 MM |
| (66) modular threads, range | .25 TO 13 |
| (66) diametral pitch, range | 3-3/8 TO 208 |
| Main motor, horsepower | 25 HP |
| Weight, approximately | 16800 LBS |
