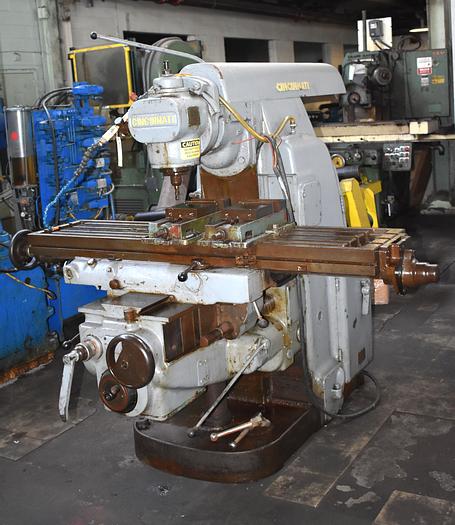

#3MI CINCINNATI-MILACRON "DIAL-TYPE" PLAIN HORIZONTAL MILL W/SWIVELING VERTICAL HEAD

#3MI CINCINNATI-MILACRON "DIAL-TYPE" PLAIN HORIZONTAL MILL W/SWIVELING VERTICAL HEAD

$4,950 (USD)

orCall +1 513-771-1952

Description

#3MI CINCINNATI-MILACRON "DIAL-TYPE" PLAIN HORIZONTAL MILL W/SWIVELING VERTICAL HEAD NEW 1954, SERIAL NO 2J3P5B-8, MODEL 3MI, SERIES OR EQUIPPED WITH: SWIVELING VERTICAL HEAD ATTACHMENT


CATALOG SPECIFICATIONS:

TABLE DIMENSIONS (OVERALL) W X L 16" X 64.75"

TABLE WORKING SURFACE, W X L 16" X 64.75"

TABLE LONGITUDINAL TRAVEL (X-AXIS) 34"

SADDLE IN-OUT CROSS TRAVEL (Z-AXIS) 12"

KNEE VERTICAL TRAVEL (Y-AXIS) 19"

SPINDLE-CENTER TO TABLE-TOP, MINIMUM 0"

SPINDLE-CENTER TO TABLE-TOP, MAXIMUM 19"

SPINDLE TAPER #50 NSTD

(24) SPINDLE SPEEDS, RANGE 18 TO 1300 RPM

(9) VERTICAL SPINDLE SPEEDS, RANGE 242 TO 2425 RPM

(32) LONGITUDINAL AND CROSS FEEDS 1/4 TO 60 IPM

(32) VERTICAL FEEDS, RANGE 1/16 TO 15 IPM

POWER RAPID TRAVERSE, LONG & CROSS 150 IPM

POWER RAPID TRAVERSE, VERTICAL 37.5 IPM

SPINDLE MOTOR, HORSEPOWER 15HP

FLOOR SPACE REQUIRED, W X D 9' X 8" X 9' X 8"

WEIGHT APPROXIMATELY 9800 LBS


PRICE: F.O.B. OUR WAREHOUSE

Specifications

Model3MI
Year1954
ConditionUsed
Serial Number2J3P5B-8
Stock Number28873
Table dimensions (overall), w x l16" X 64.75"
Table working surface, w x l16" X 64.75"
Table longitudinal travel (x-axis)34"
Saddle in-out cross travel (z-axis)12"
Knee vertical travel (y-axis)19"
Spindle-center to table-top, minimum0"
Spindle-center to table-top, maximum19"
Spindle taper#50 NSTD
(24) spindle speeds, range18 TO 1300 RPM
(9) vertical spindle speeds, range242 TO 2425 RPM
(32) longitudinal and cross feeds1/4 TO 60 IPM
(32) vertical feeds, range1/16 TO 15 IPM
Power rapid traverse, long & cross150 IPM
Power rapid traverse, vertical37.5 IPM
Spindle motor, horsepower15 HP
Floor space required, w x d9'8" X 9'8"
Weight, approximately9800 LBS
