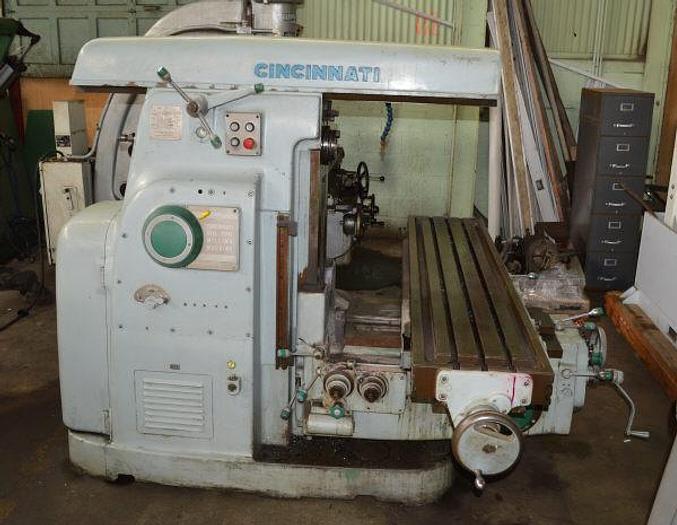

#420-16 CINCINNATI-MILACRON "DIAL-TYPE" PLAIN HORIZONTAL MILL

#420-16 CINCINNATI-MILACRON "DIAL-TYPE" PLAIN HORIZONTAL MILL

$4,950 (USD)

orCall +1 513-771-1952

Description

#420-16 CINCINNATI-MILACRON "DIAL-TYPE" PLAIN HORIZONTAL MILL SERIAL NO 4A4P5S-3, MODEL 420-16, LTR LL, SERIES "DIAL-TYPE" EQUIPPED WITH: FRONT AND REAR CONTROLS MOTOR ON KNEE COOLANT SYSTEM (BUILT-IN) PRICE: F.O.B. OUR WAREHOUSE

Specifications

Model420-16
ConditionUsed
Serial Number4A4P5S-3
Stock Number27787
Table dimensions (overall), w x l16.25" X 79.25"
Table working surface, w x16.25" X 79.25"
Table longitudinal travel (x-axis)42"
Saddle in-out cross travel (z-axis)14"
Knee vertical travel (y-axis)20"
Spindle-center to table-top, minimum0"
Spindle-center to table-top, maximum20"
Spindle taper#50 NSTD
(24) spindle speeds, range16 TO 1600 RPM
(32) longitudinal and cross feeds3/8 TO 90 IPM
(32) vertical knee feeds, range3/32 TO 22.5 IPM
Power rapid traverse, long & cross150 IPM
Power rapid traverse, vertical37.5 IPM
Spindle motor, horsepower20 HP
Feed motor, horsepower5 HP
Floor space required, w x d9'8" X 11'10"
Weight, approximately10300 LBS
