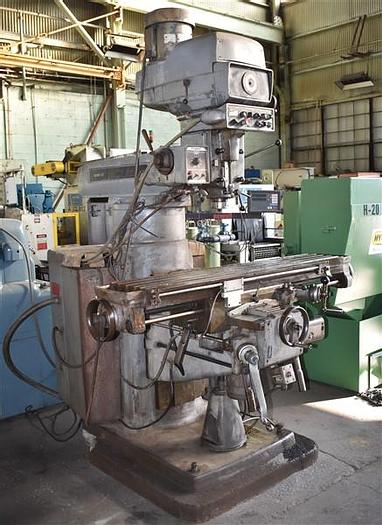

#4J BRIDGEPORT "SERIES-II" VERTICAL MILL

#4J BRIDGEPORT "SERIES-II" VERTICAL MILL
SERIAL NO 3261, MODEL 4J, SERIES "SERIES-II"

EQUIPPED WITH:
POWER FEED TO TABLE, SADDLE & KNEE
BRIDGEPORT POWER DOWN-FEED TO QUILL ATTACHMENT

PRICE: F.O.B. OUR WAREHOUSE
Table dimensions (overall), w x l: 11" X 58"
Table longitudinal travel (x-axis): 30"
Saddle cross travel (y-axis): 15"
Knee vertical travel (z-axis): 16"
Quill travel: 5"
Throat distance, minimum: 10.625"
Throat distance, maximum: 26.625"
Workpiece load capacity, maximum: 1500 LBS
Quill diameter: 4.25"
Spindle-nose, diameter: 2.125"
Spindle taper: #40
Spindle-head swivel degrees, l-r: 90-DEGREES
Spindle-head swivel degrees, f-b: 30-DEGREES
Spindle speeds, infinitely variable: 50 TO 3500 RPM
Longitudinal and cross feeds: 3/8 TO 24 IPM
Vertical knee feeds, range: 3/16 TO 12 IPM
Power rapid traverse, long & cross: 24 IPM
Power rapid traverse, vertical: 12 IPM
Spindle motor, horsepower/rpm: 4 HP/ 1740 RPM
Electrical system: 230-460/3/60
Floor space required, w x d: 10' X 7'
Weight, approximately: 5220 LBS
