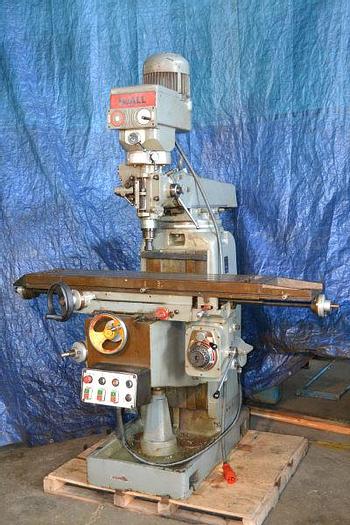

#FV-2V DOALL HEAVY-DUTY VERTICAL MILL
Description
#FV-2V DOALL HEAVY-DUTY VERTICAL MILL SERIAL NO. 106, MODEL FV-2V, EQUIPPED WITH: POWER FEED TO TABLE POWER DOWN-FEED TO QUILL PRICE: F.O.B. OUR WAREHOUSE
Specifications
| Model | FV-2V |
| Condition | Used |
| Serial Number | 106.0 |
| Stock Number | 26858 |
| Table working surface, w x l | 12" X 49" |
| Table longitudinal travel (x-axis) | 31.5" |
| Saddle cross travel (y-axis) | 15.75" |
| Knee vertical travel (z-axis) | 17.62" |
| Quill travel | 5.125" |
| Spindle nose to table, minimum | 0" |
| Spindle nose to table, maximum | 17.625" |
| Throat distance, minimum | 6.31" |
| Throat distance, maximum | 31.5" |
| Workpiece load capacity, maximum | 1500 LBS |
| Quill diameter | 3.375" |
| Spindle taper | #NS40 |
| Spindle-head longitudinal swivel | 180-DEGREES |
| Spindle-head swivel degrees, f-b | 90-DEGREES |
| Spindle speeds, infinitely variable | 60 TO 4350 RPM |
| Quill feeds, range | .0025 TO .0040 IPR |
| Longitudinal and cross feeds | 1/2 TO 20.875 IPM |
| Vertical knee feeds, range | 3/16 TO 12 IPM |
| Spindle motor, horsepower | 3 HP |
| Weight, approximately | 3100 LBS |
