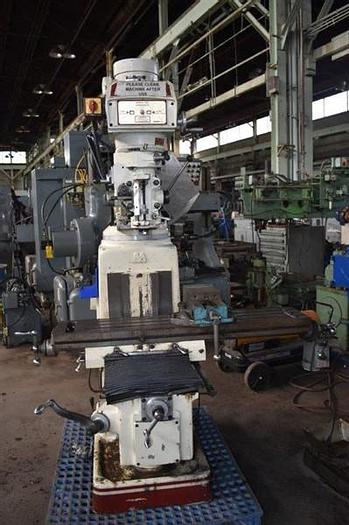

#3VK ACER "ULTIMA" VERTICAL MILL W/DIGITAL READOUTS

#3VK ACER "ULTIMA" VERTICAL MILL W/DIGITAL READOUTS

$3,950 (USD)

orCall 513-771-1952

Description

#3VK ACER "ULTIMA" VERTICAL MILL W/DIGITAL READOUTS NEW 1995, SERIAL NO 9501081, MODEL 3VK, EQUIPPED WITH: ACU-RITE "MILL MATE" 2-AXIS DIGITAL READOUTS POWER LONGITUDINAL TABLE FEED (OPTIONAL) POWER DOWN-FEED TO QUILL MANUAL VISE PRICE: F.O.B. OUR WAREHOUSE

Specifications

Model3VK
Year1995
ConditionUsed
Serial Number9501081.0
Stock Number29319
Table dimensions (overall), w x l10" X 50"
Table longitudinal travel (x-axis)34"
Saddle cross travel (y-axis)16"
Knee vertical travel (z-axis)16"
Ram travel24"
Quill travel5"
Spindle-center to column, minimum4"
Spindle-center to column, maximum28.75"
Spindle-nose to table, minimum2"
Spindle-nose to table, maximum18"
Quill, diameter3.375"
Spindle taper#R-8
Spindle-head swivel, degrees90-DEGREES
Spindle-head tilt, degrees45-DEGREES
Spindle speeds, range60 TO 4200 RPM
Power quill feeds, range.0015 TO .006 IPR
Spindle motor, horsepower3 HP
Overall dimensions, w x l5'9" X 4'9"
Weight, approximately3400 LBS
