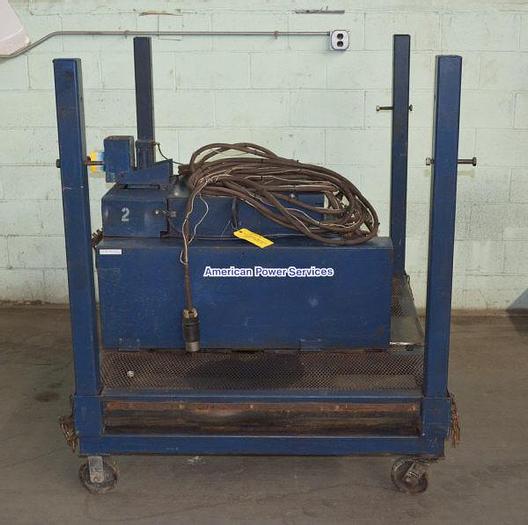

#515AE SWEED PORTABLE SCRAP CHOPPER

#515AE SWEED PORTABLE SCRAP CHOPPER
SERIAL NO , MODEL 515AE

EQUIPPED WITH:
AIR-ACTUATED FEEDWORKS CONTROLLED W/FOOT SWITCH
ADJUSTABLE HEIGHT STAND WITH PEG ADJUSTMENT
(1) ROTATING KNIFE
(1) STATIONARY KNIFE

NOTE: THIS MACHINE WORKS BY INTRODUCING THE MATERIAL
INTO THE INFEED FUNNEL. THE FEEDWORKS WILL PINCH
THE MATERIAL AND PULL IT INTO THE ROTATING KNIFE
PATH. THE FEEDWORKS WILL CONTINUE TO PULL AT A RATE
OF 90 FPM UNTIL MATERIAL IS CONSUMED OR THE
OPERATOR RELEASES THE AIR-ACTIVATED FEEDWORKS VIA
THE FOOT SWITCH. REPLACEMENT PRICE $8,495.00.

PRICE: F.O.B. OUR WAREHOUSE
Nfeed opening: 3.625" X 1.625"
Cut length: 3.5"
Infeed speed: 90 FPM
Mat processed 1-8 steel bands w/clips: .75" X .031"
Mat processed 1-2 steel bands w/clips: 1.25" X .031"
Mat processed high tensile bale wire w/knots: 11 GA
Motor horsepower: 3 HP
Electrical system: 230-460/3/60
Overall dimensions, l x w: 53" X 34"
Overall height: 30"
Weight approximately: 1262 LBS
