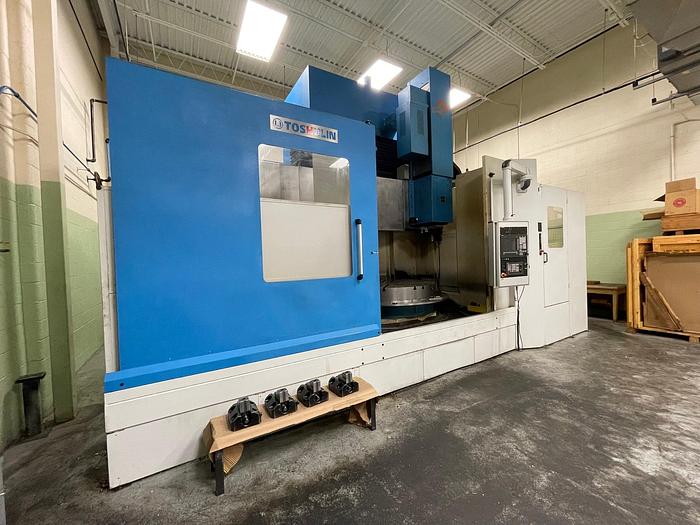

63"/78.7" TOSHULIN "BASICTURN" CNC VERTICAL BORING MILL

63"/78.7" TOSHULIN "BASICTURN" CNC VERTICAL BORING MILL

$425,000 (USD)

orCall 513-771-1952

Description

63"/78.7" TOSHULIN "BASICTURN" CNC VERTICAL BORING MILL

New 2014, Serial No 1728, Model BT1600,

 Series Basicturn


EQUIPPED WITH:

Siemens Sinumerik #840D CNC Control

36-Position Automatic Tool Changer

C-Axis Variable Speed Gear Driven Table

Right Angle Head (Live Spindle)

Right Angle Head (Fixed)

Coolant System w/Chip Conveyor


CATALOG SPECIFICATIONS:

Table Diameter . . . . . . . . . . 63" 1600MM

Swing, Maximum . . . . . . . . . . 78.7" 2000MM

Cross Rail Stroke, Maximum . . . . . . . . . . 31.5" 800MM

Rail Head Working Travel, Table Center Left . . . . . . . . . . 40" 1020MM

Rail Head Working Travel, Table Center Right . . . . . . . . . . 57" 1450MM

Ram Vertical Stroke . . . . . . . . . . 41.7" 1060MM

Ram Cross Section . . . . . . . . . . 78.7" x 9.45"

Ram Cross Section . . . . . . . . . . 200MM x 240MM

Workpiece Diameter, Maximum . . . . . . . . . . 78.7" 2000MM

Workpiece Height, Maximum . . . . . . . . . . 57" 1450MM

Workpiece Weight Capacity . . . . . . . . . . 26455 LBS 12000KG

Table Speeds, Range . . . . . . . . . .  2 to 400 RPM

Table Speed, C-Axis . . . . . . . . . . .01 to 6.2 RPM

Live Spindle Speeds, Range . . . . . . . . . . 12 to 3000 RPM

Cross-Rail Shifting Speed . . . . . . . . . . 11.3 IPM 287MMPM

Working Feed, Range . . . . . . . . . . .0293 to 157.48 IPM

Working Feed, Range . . . . . . . . . . 1 to 4000MMPM

Rapid Traverse Rate . . . . . . . . . . 472.44 IPM 12000 MMPM

Spindle Taper . . . . . . . . . . #50 CAT

Rotary Tool Drive Motor . . . . . . . . . . 30 HP 22KW

Main Drive Motor . . . . . . . . . . 82.5 HP 60KW

Weight Approximately . . . . . . . . . . 88185 LBS 40000KG


NOTE: This Machine Appears To Be In Very Good Condition

 With A Replacement Price Of Over $1,500,000.00. Machine

 Can Be Shown In Plant Under Power.


PRICE: OHIO (CINCINNATI)

Specifications

ManufacturerTOSHULIN
ModelBT1600 Basicturn
Year2014
ConditionUsed
Serial Number1728
Stock NumberMH070
Swing, Maximum78.7" 2000MM
Cross Rail Stroke, Maximum31.5" 800MM
Ram Vertical Stroke41.7" 1060MM
Ram Cross Section78.7" x 9.45"
Ram Cross Section200MM x 240MM
Workpiece Diameter, Maximum78.7" 2000MM
Workpiece Height, Maximum57" 1450MM
Workpiece Weight Capacity26455 LBS 12000KG
Table Speeds, Range2 to 400 RPM
Table Speed, C-Axis01 to 6.2 RPM
Live Spindle Speeds, Range12 to 3000 RPM
Cross-Rail Shifting Speed11.3 IPM 287MMPM
Working Feed, Range0293 to 157.48 IPM
Working Feed, Range1 to 4000MMPM
Rapid Traverse Rate472.44 IPM 12000 MMPM
Spindle Taper#50 CAT
Rotary Tool Drive Motor30 HP 22KW
Main Drive Motor82.5 HP 60KW
Weight Approximately88185 LBS 40000KG
Table Diameter63" 1600MM
