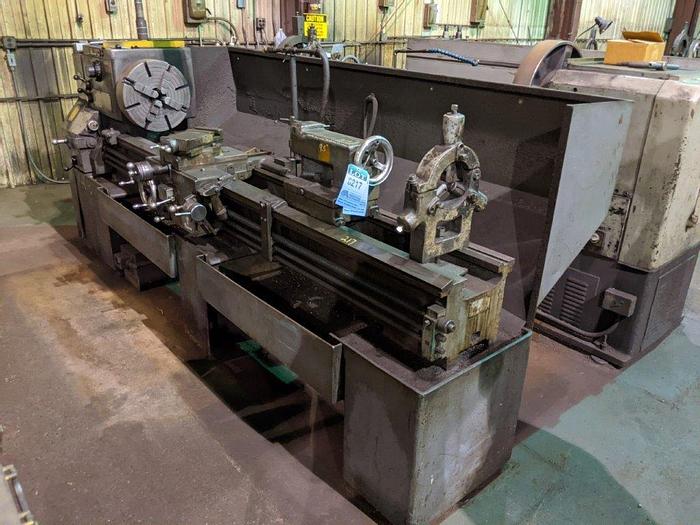

19" X 78" LEBLOND "REGAL" ENGINE LATHE W/SERVO-SHIFT & INCH/METRIC

19" X 78" LEBLOND "REGAL" ENGINE LATHE W/SERVO-SHIFT & INCH/METRIC

$11,500 (USD)

orCall 513-771-1952

Description

19" x 78" LEBLOND "REGAL" ENGINE LATHE w/INCH/METRIC

Serial No. 11E-497, Model 19" REGAL


EQUIPPED WITH:

Servo-Shift Hydraulic Shifting

16" 4-Jaw Chuck - Turret Depth Stop

Inch-Metric Threading - Steady Rest

Hard Ways - Threading Dial


CATALOG SPECIFICATIONS:

Swing Over Bed Ways, Rated  . . . . . . . . .  19"

Swing Over Bed Ways, Actual  . . . . . . . . .  19-1/4"

Swing Over Cross-Slide  . . . . . . . . .  12-1/4"

Distance Between Centers  . . . . . . . . .  78"

Hole Thru Spindle  . . . . . . . . .  3 1/16"

Spindle Nose  . . . . . . . . .  L-2

(12) Spindle Speeds, Range  . . . . . . . . .  to 1000 RPM

(48) Longitudinal Carriage Feeds  . . . . . . . . .  .0018 to .104 IPR

(48) Thread Changes, Range  . . . . . . . . .  2 to 112 TPI

(48) Metric Thread Changes, Range  . . . . . . . . .  .05 to 2.6 MMPR

Cross-Slide Cross Feed w/o Taper  . . . . . . . . .  11-1/4"

Tailstock, Spindle Taper  . . . . . . . . .  #4 MT

Tailstock, Spindle Diameter  . . . . . . . . .  2-7/16"

Tailstock, Spindle Travel  . . . . . . . . .  7"

Motor, Horsepower/RPM  . . . . . . . . .  10 HP/1800 RPM

Electrical System  . . . . . . . . .  230-460/3/60

Overall Dimensions, L x D  . . . . . . . . .  137" x 50"

Weight, Approximately  . . . . . . . . .  4440 LBS


F.O.B. OUR WAREHOUSE


Specifications

ManufacturerLEBLOND
ModelRegal
ConditionUsed
Serial Number11E-497
Stock Number29500
Swing Over Cross-Slide12-1/4"
Distance Between Centers78"
Hole Thru Spindle3 1/16"
Spindle NoseL-2
(12) Spindle Speeds, Rangeto 1000 RPM
(48) Longitudinal Carriage Feeds0018 to .104 IPR
(48) Thread Changes, Range2 to 112 TPI
Tailstock, Spindle Taper#4 MT
Tailstock, Spindle Diameter2-7/16"
Tailstock, Spindle Travel7"
Motor, Horsepower/RPM10 HP/1800 RPM
Electrical System230-460/3/60
Weight, Approximately4440 LBS
