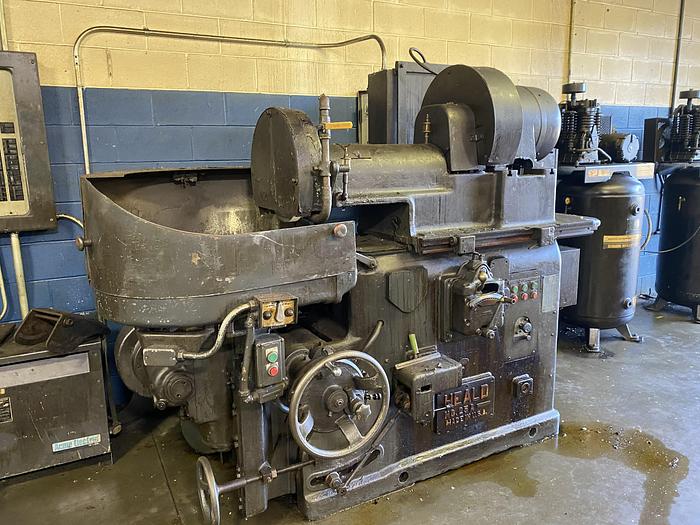

24" HEALD "25A" HORIZONTAL-SPINDLE ROTARY SURFACE GRINDER

24" HEALD "25A" HORIZONTAL-SPINDLE ROTARY SURFACE GRINDER

$14,500 (USD)

orCall 513-771-1952

Description

24" HEALD HORIZONTAL-SPINDLE ROTARY SURFACE GRINDER

Serial No. 16361, Model 25A


EQUIPPED WITH:

24" Diameter Magnetic Chuck w/Rectifier & Neutrol

Spindle Motor Mounted On Top Slide

Coolant System (Tank & Pump)


CATALOG SPECIFICATIONS:

Magnetic Chuck, Diameter .......... 24"

Swing With-In Coolant Guards .......... 26-3/4"

Grinding Wheel, Maximum Diameter .......... 18"

Grinding Wheel, Minimum Diameter .......... 14"

Grinding Wheel, Width .......... 2"

Grinding Wheel, Hole Diameter .......... 8"

Grinding Wheel Speed .......... 1215 RPM

Chuck Speeds, Range .......... 29 to 86 RPM

Maximum Convex Table Angle, Degres .......... 15-DEGREES

Maximum Concave Table Angle, Deg .......... 5-DEGREES

Spindle Center to Chuck, Maximum .......... 13-3/4"

Spindle Center to Chuck, Minimum .......... 7"

Spindle Motor, Horsepower/RPM .......... 10 HP/1745 RPM

Electrical System .......... 220-440/3/60

Overall Dimensions, L x W .......... 9'9" x 5'7"

Weight, Approximately .......... 8,500 LBS.


F.O.B. ON WAY IN


Specifications

ManufacturerHEALD
Model25A
ConditionUsed
Serial Number16361
Stock Number29506
Magnetic Chuck, Diameter24"
Swing With-In Coolant Guards26-3/4"
Grinding Wheel, Maximum Diameter18"
Grinding Wheel, Minimum Diameter14"
Grinding Wheel, Width2"
Grinding Wheel, Hole Diameter8"
Grinding Wheel Speed1215 RPM
Chuck Speeds, Range29 to 86 RPM
Spindle Motor, Horsepower/RPM10 HP/1745 RPM
Electrical System220-440/3/60
Weight, Approximately8,500 LBS.
