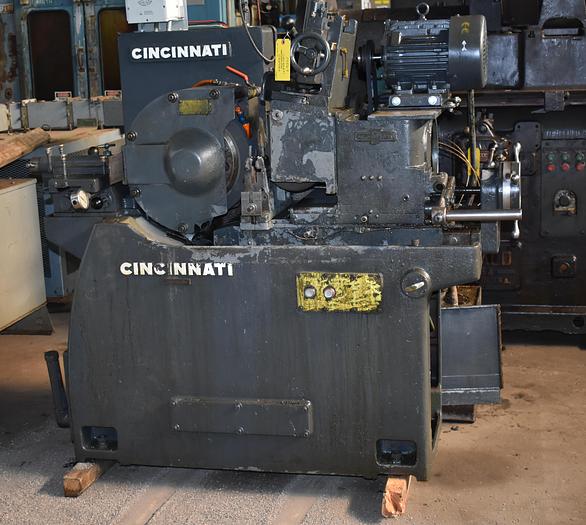

0 CINCINNATI-MILACRON "LO" CENTERLESS GRINDER

0 CINCINNATI-MILACRON "LO" CENTERLESS GRINDER

$6,950 (USD)

orCall 513-771-1952

Description

#0 CINCINNATI-MILACRON CENTERLESS GRINDER

Serial No. 1M1H6B-20, Size 0, Model "LO"


EQUIPPED WITH:

World Wide Vari-Speed Drive to Regulating Wheel (Updated)

Horizontal Hydraulic Grinding Wheel Truing

Vertical Hydraulic Regulating Wheel Truing

Manual Infeed

Coolant System


CATALOG SPECIFICATIONS:

Capacity, Minimum Diameter .......... 0"

Capacity, Maximum Diameter .......... 1/2"

Grinding Wheel, Maximum Diameter .......... 14"

Grinding Wheel, Maximum Width .......... 4"

Grinding Wheel, Hole Diameter .......... 6"

Regulating Wheel, Maximum Diameter .......... 7"

Regulating Wheel, Maximum Width .......... 4"

Regulating Wheel, Hole Diameter .......... 2"

Regulating Wheel Speeds, Range .......... 35 to 325 RPM

Grinding Wheel Motor, Horsepower .......... 2 HP

Regulating Wheel Motor, Horsepower .......... 1/4 HP

Electrical System .......... 440/3/60

Overall Dimensions, L x W .......... 5'1" x 3'7"

Weight, Approximately .......... 3500 LBS.


F.O.B. OUR WAREHOUSE


Specifications

ManufacturerCINCINNATI-MILACRON
Model"LO"
ConditionUsed
Serial Number1M1H6B-20
Stock Number29509
Capacity, Minimum Diameter0"
Capacity, Maximum Diameter1/2"
Grinding Wheel, Maximum Diameter14"
Grinding Wheel, Maximum Width4"
Grinding Wheel, Hole Diameter6"
Regulating Wheel, Maximum Diameter7"
Regulating Wheel, Maximum Width4"
Regulating Wheel, Hole Diameter2"
Regulating Wheel Speeds, Range35 to 325 RPM
Grinding Wheel Motor, Horsepower2 HP
Regulating Wheel Motor, Horsepower1/4 HP
Electrical System440/3/60
Weight, Approximately3500 LBS.
