10' X 1/4" LVD HYDRAULIC POWER SQUARING SHEAR

Serial No 18005, Model JS-25/10

EQUIPPED WITH:

Newall "DP700" Digital Readouts

40" Front Operated Power Back Gauge

80" Squaring Arm - Adjustable Rake

(14) Hydraulic Holddowns

Flush Floor Mount Design

Extra Blade

CATALOG SPECIFICATIONS:

Shearing Capacity, Mild Steel (60000 PSI) 10' x 1/4"

Length Of Cut 122"

Distance Between Housings 126"

Rake Angle Adjustment, Minimum 0.5-DEGREES

Rake Angle Adjustment, Maximum 2.5-DEGREES

Back Gauge, Range to 40"

Blade Clearance Adjustment, Range .002" to .024"

Strokes Per Minute, Maximum 50 SPM

Strokes Per Minute, Minimum 14 SPM

Main Motor, Horsepower 18 HP

Overall Dimensions, L x W 153" x 67"

Overall Height 70"

Weight, Approximately 11000 LBS

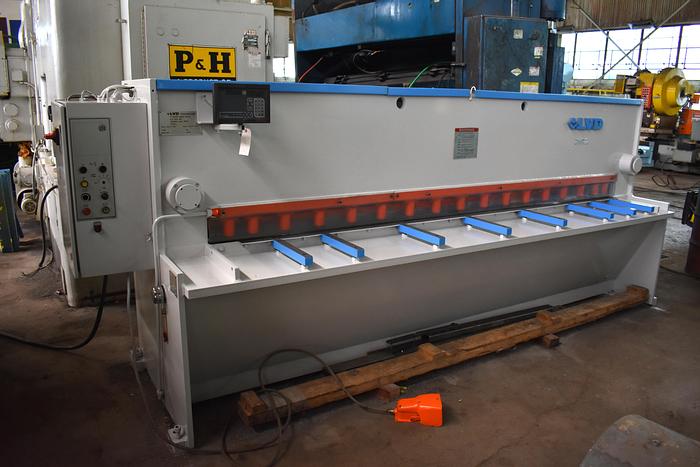

10' x 1/4" LVD "JS 25/10" HYDRAULIC POWER SQUARING SHEAR
