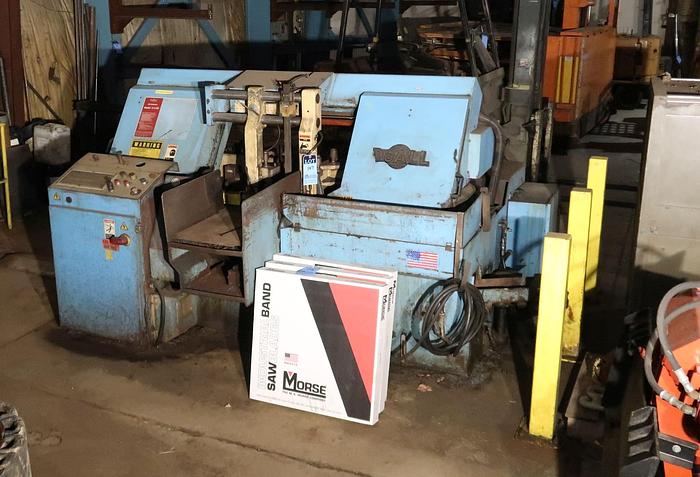

16" x 14" DOALL "C-4100NC" PROGRAMMABLE HIGH-PRODUCTION HORIZONTAL BAND SAW

#C-4100NC DOALL PROGRAMMABLE HIGH-PRODUCTION

AUTOMATIC HORIZONTAL BAND SAW

Serial No. 514-95134, Model C-4100NC

EQUIPPED WITH:

Programmable Control

Multiple Indexing

Automatic Hydraulic Stock-Feed Table

Hydraulic Stock-Feeding and Clamping Vises

Hydraulic Band Saw Up-Feed & Down-Feed

Automatic Hydraulic Band Tension

Built-in Coolant System w/Powered Chip Auger

(3) Extra Saw Blades

CATALOG SPECIFICATIONS:

Maximum Capacity, Round Stock 16"

Maximum Capacity, Square Stock 14"

Maximum Capacity, Rectangular Stock 16"W x 14"H

Minimum Capacity, Round   1/2"

Single Length Index   24"

Multiple Length Index   999"

Minimum Length Index  1/4"

Band Length 186"

Band Width 1.25"

Band Speeds, Variable 40 to 360 FPM

Band Carrier Wheels, Diameter 21"

Band Motor, Horsepower 10 HP

Hydraulic Motor, Horsepower   2 HP

Floor Space w/Stock-Feed Table, L x W 21' x 6'1"

Overall Height 7'4"

Weight, Approximately 6800 LBS

F.O.B. OUR WAREHOUSE
