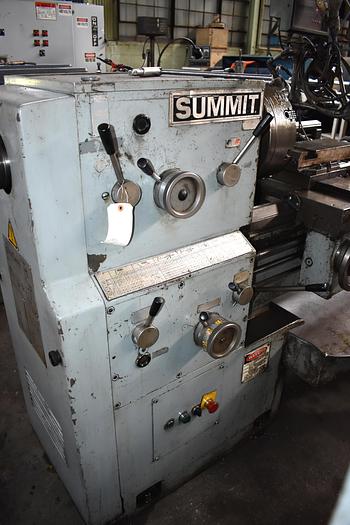

19/27" x 80" SUMMIT "19-4" GAP-TYPE ENGINE LATHE w/TAPER ATTACHMENT & DIGITAL READOUTS

19"/27" x 80" SUMMIT GAP-TYPE ENGINE LATHE

 w/TAPER ATTACHMENT & DIGITAL READOUTS

Serial No 073437536, Model 19-4X80

EQUIPPED WITH:

Digital Readouts

Taper Attachment

Threading (Inch-Metric Full-Length Lead Screw)

12" 4-Jaw Chuck w/Jaws

Steady Rest - 4-Way Tool Post

Hardened & Ground Bed Ways

TEMPORARY CATALOG SPECIFICATIONS:

Hole Thru Spindle .......... 4.125"

Swing Over Bed Ways, Rated .......... 19"

Swing thru Gap .......... 27"

Gap Length .......... 15.375"

Swing Over Cross-Slide .......... 10.75"

Distance Between Centers .......... 80"

Workpiece Weight Capacity w/Steady .......... 5000 LBS

Cross-Slide Cross-Feed Travel .......... 13.75"

Compound Rest Travel .......... 6.25"

(12) Spindle Speeds, Range .......... 22 to 1500 RPM

(56) Carriage Longitudinal Feeds .......... .0009 to .112 IPR

(56) Cross-Slide Cross Feeds .......... .0004 to .056 IPR

(56) Metric Feeds, Range .......... .0235 to 2.84

(56) Thread Changes, Range .......... 3/4 to 92 TPI

(35) Metric Thread Changes, Range .......... .25 to 23

(26) Module Threads, Range .......... .25 to 11.5

(56) Diametral Pitch, Range .......... 1.5 to 184 DP

Main Motor, Horsepower/RPM .......... 7.5 HP/1740 RPM

Overall Dimensions, L x W x H .......... 12' x 4' x 5'

Weight Approximately .......... 6800 LBS

F.O.B. our warehouse
