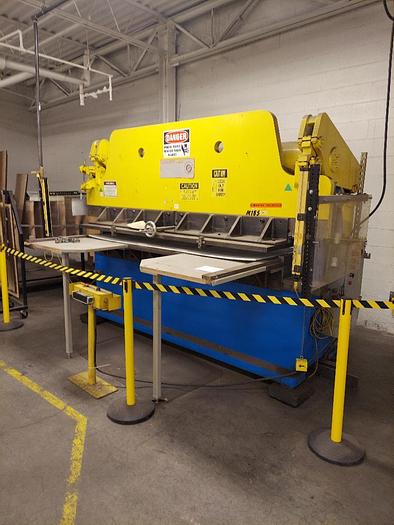

10' ACCURPRESS 100-TON HYDRAULIC PRESS BRAKE/DIE CUTTER

10' ACCURPRESS 100-TON HYDRAULIC PRESS BRAKE/DIE CUTTER

$24,500 (USD)

orCall +1 513-587-2399

Description

10' ACCURPRESS 100-TON HYDRAULIC PRESS BRAKE/DIE CUTTER

New 1983, Serial No 465, Model 710010


EQUIPPED WITH:

24" Removeable Angle Plates For Die Cutting Application

Sick Presence Sensing Light Beam


CATALOG SPECIFICATIONS:

Tonnage Capacity 100 TON

Overall Length of Bed and Ram 10'

Distance Between Housings 100"

Stroke Length 8"

Open Height 14"

Closed Height 6"

Throat Depth 10"

Ram Speed, Approach/Fast 115 IPM

Ram Speed, Pressing/Slow Bend 24 IPM

Ram Speed, Return/Fast 260 IPM

Bed Height   34"

Motor, Horsepower 10 HP

Overall Dimensions, L x W   136" x 47"

Overall Height   84"

Weight, Approximately 14000 LBS


NOTE: This Machine Has Exclusively Been Used As A Die Cutting

Machine For A Fabric Type Material.


F.O.B. ON WAY IN


Specifications

ManufacturerACCURPRESS
Model7100-10
ConditionUsed
Serial Number465
Stock Number29573
