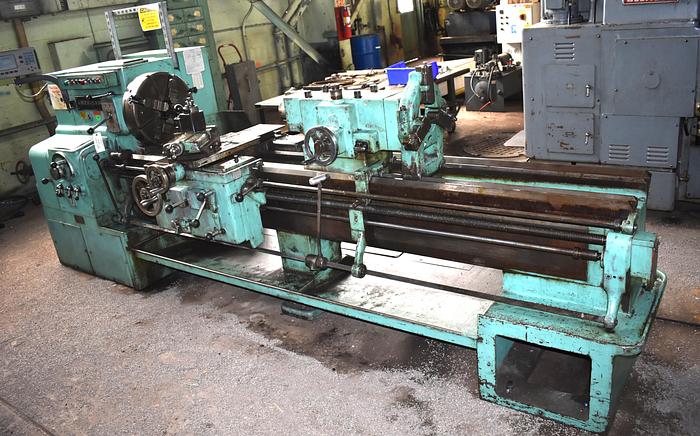

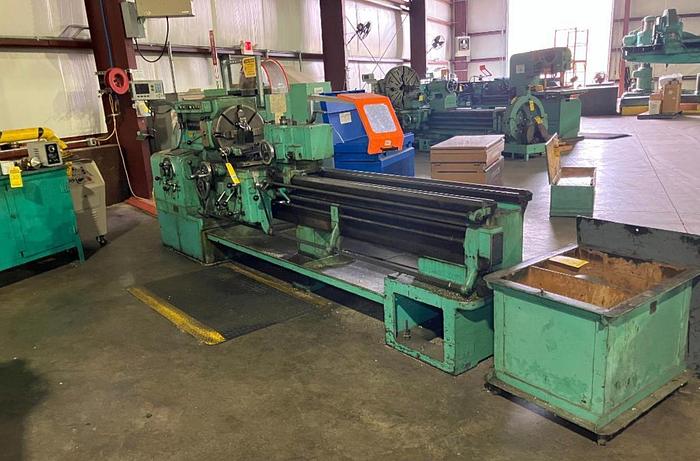

21.5" x 78" AMERICAN "STYLE C 16X78" ENGINE LATHE w/DIGITAL READOUTS

21.5" x 78" AMERICAN "STYLE C 16X78" ENGINE LATHE w/DIGITAL READOUTS

$12,500 (USD)

orCall +1 513-771-1952

Description

21.5" x 78" AMERICAN "STYLE C 16X78" ENGINE LATHE

w/DIGITAL READOUTS

Serial No 79647-74, Style C 16x78



EQUIPPED WITH:

Acu-Rite 2-Axis Digital Readout

18" 4-Jaw Chuck w/Jaws - Steady Rest

Turret Depth Stop

Hard Ways - 4-Way Tool Post

Full-Length Lead-Screw Threading

Quick Change Gear Box and Threading Dial

Full Length Coolant-Chip Pan



CATALOG SPECIFICATIONS:

Hole Thru Spindle...................... 2"

Swing Over Bed Ways, Rated............. 16"

Swing Over Bed Ways, Actual............ 21.5"

Swing Over Carriage Wings.............. 20"

Swing Over Cross-Slide................. 13"

Distance Between Centers............... 78"

Cross-Slide Cross-Feed Travel.......... 12.25"

Top-Slide Cross-Feed Travel............ 4"

Tailstock, Spindle Diameter............ 4"

Tailstock, Spindle Travel.............. 10"

Tailstock, Spindle Taper............... #4 MT

(27) Spindle Speeds, Range............. 15 to 1000 RPM

(66) Carriage Longitudinal Feeds....... .0015 to .091 IPR

(66) Thread Changes, Range............. 2 to 120 TPI

Weight, Approximately.................. 10500 LBS



F.O.B. OUR WAREHOUSE


Specifications

ManufacturerAMERICAN
ModelStyle C
ConditionUsed
Serial Number79647-74
Stock Number29577
