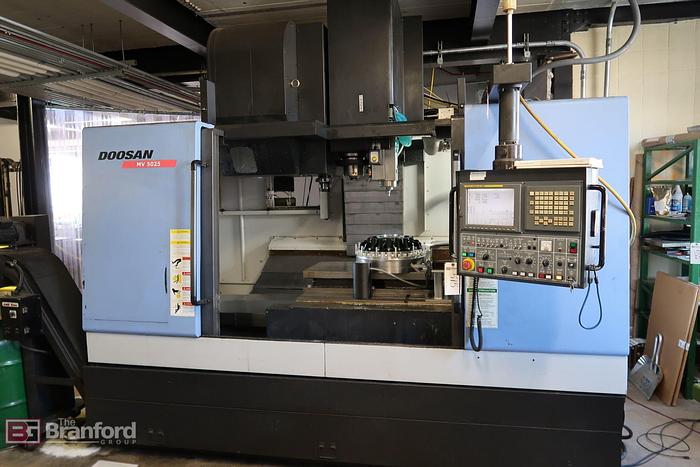

MV5025 DOOSAN "HIGH-PERFORMANCE" CNC VERTICAL MACHINING CENTER

MV5025 DOOSAN "HIGH-PERFORMANCE" CNC VERTICAL MACHINING CENTER

$49,500 (USD)

orCall +1 513-771-1952

Description

MV5025 DOOSAN "HIGH-PERFORMANCE" CNC VERTICAL MACHINING CENTER

New 2007, Serial No AV631150, Model MV5025


EQUIPPED WITH:

Fanuc Series 21L-MB CNC Control

30-Position Automatic Tool Changer

LNS "Turbo" Chip Conveyor

Kaukan Oil Cooler

Coolant System- Tool Setter Probe

Some Tooling


CATALOG SPECIFICATIONS:

Table Dimensions (Overall), W x L ..........  25.6" x 55.1"

Table Load Capacity ..........  2200 LBS

Table Longitudinal Travel (X-Axis) ..........  51"

Saddle Cross Travel (Z-Axis) ..........  24.6"

Vertical Travel (Y-Axis) ..........  25.5"

Spindle Taper ..........  CAT #40

Spindle Speeds, Range ..........  0 to 12000 RPM

Cutting Feedrate, Maximum ..........  500 IPM

Rapid Traverse Rates, X, Y-Axis' ..........  945 IPM

Rapid Traverse Rate, Z-Axis ..........  787 IPM

Spindle Motor, Horsepower ..........  20 HP/15KW



F.O.B. OUR WAREHOUSE


Specifications

ManufacturerDOOSAN
ModelMV5025
Year2007
ConditionUsed
Serial NumberAV631150
Stock Number29602
Table Load Capacity2200 LBS
Table Longitudinal Travel (X-Axis)51"
Saddle Cross Travel (Z-Axis)24.6"
Vertical Travel (Y-Axis)25.5"
Spindle TaperCAT #40
Spindle Speeds, Range0 to 12000 RPM
Cutting Feedrate, Maximum500 IPM
Rapid Traverse Rate, Z-Axis787 IPM
Spindle Motor, Horsepower20 HP/15KW
