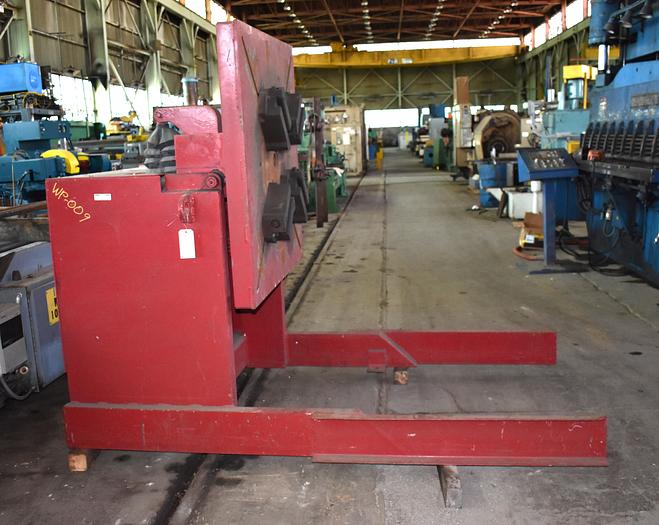

6000 LB PANDJIRIS "60-12" WELDING POSITIONER

6000 LB PANDJIRIS WELDING POSITIONER

Serial No 41-0030, Model 60-12

EQUIPPED WITH:

PENDANT Control

360-Degree Variable-Speed Power Rotation

135-Degree Power Tilt

48" x 48" T-Slotted Square Table w/Adjustable Jaws

CATALOG SPECIFICATIONS:

Thru Hole .......... 2"

Table Dimensions (Overall) W x L .......... 48" x 48"

Table Weight at 12" Eccentricity .......... 6000 LBS

Table Weight at 18" Eccentricity .......... 4615 LBS

Table Weight at 24" Eccentricity .......... 3750 LBS

Table Weight at 30" Eccentricity .......... 3158 LBS

Table Weight at 36" Eccentricity .......... 2727 LBS

Table Weight at 42" Eccentricity .......... 2400 LBS

Table Weight at 48" Eccentricity .......... 2143 LBS

Rotational Torque .......... 72000 INCH POUNDS

Table Rotation, Degrees .......... 360-DEGREES

Table Tilt, Degrees .......... 135-DEGREES

Table Rotation Speed, Variable .......... .03 to 0.73 RPM

Rotational Motor, Horsepower .......... 2 HP

Tilt Motor, Horsepower .......... 2 HP

Electrical System .......... 230-460/3/60

Overall Dimensions, L x W .......... 8'1" x 5'6"

Weight, Approximately .......... 3100 LBS

F.O.B. OUR WAREHOUSE
