8"x 18" CHEVALIER "FSG818M" MANUAL FEED HORIZONTAL-SPINDLE SURFACE GRINDER

8"x 18" CHEVALIER "FSG818M" MANUAL FEED HORIZONTAL-SPINDLE SURFACE GRINDER

$4,950 (USD)

orCall +1 513-771-1952

Description

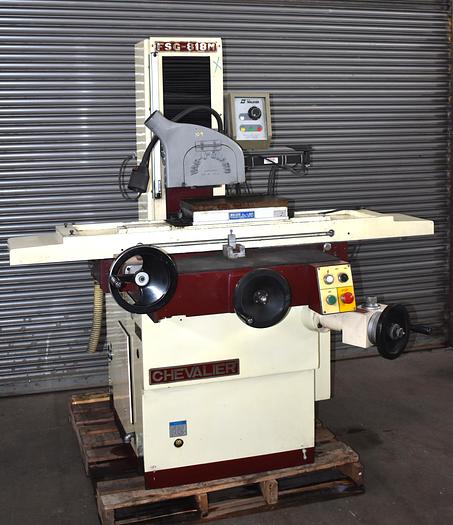

8" X 18" CHEVALIER MANUAL HORIZONTAL-SPINDLE SURFACE GRINDER

Serial No N5836001, Model FSG818M,


EQUIPPED WITH:

8" x 15" Walker Electro-Magnetic Chuck


CATALOG SPECIFICATIONS:

Table Working Surface, W x L 8" x 18"

Grinding Width Capacity, Maximum 8"

Grinding Length Capacity, Maximum 18"

Height Spindle Centerline To Table, Maximum 18"

Grinding Wheel Diameter, Standard 8"

Grinding Wheel Width, Standard 0.5"

Grinding Wheel Hole Diameter 1.25"

Table Longitudinal Travel Manual 21"

Table Cross Travel, Manual 9.5"

Floor Space Required, L x D 90" x 60"

Overall Height 68"

Weight, Approximately 2550 LBS


F.O.B. OUR WAREHOUSE


Specifications

ManufacturerCHEVALIER
ModelFSG818M
ConditionUsed
Stock Number29615
