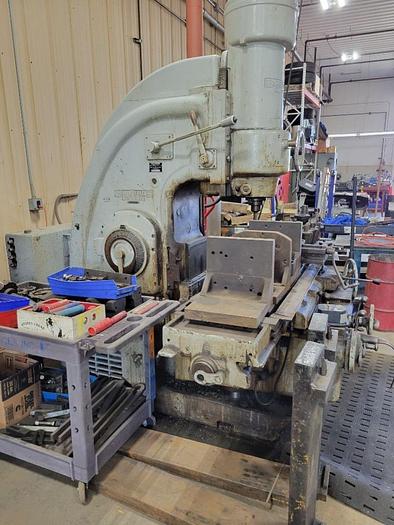

430TF-17 KEARNEY & TRECKER "TWIN-SCREW" VERTICAL MILL

430TF-17 KEARNEY & TRECKER "TWIN-SCREW" VERTICAL MILL

$14,500 (USD)

orCall +1 513-771-1952

Description

430TF-17 KEARNEY & TRECKER "TWIN-SCREW" VERTICAL MILL

Serial No. 8-9549, Model 430TF-17


EQUIPPED WITH:

Mono Lever & Auto Cycle Table Control

Twin Elevating Screws

Turret Depth Stops

Large Crate Of Tooling Including: Vice - Extra Tool Holders

Cutters - 18" Manual Indexing Rotary Table - ETC


CATALOG SPECIFICATIONS:

Table Working Surface, W x L 17" x 80"

Longitudinal Table Travel (X-Axis) 42"

Cross Saddle Travel (Y-Axis) 16"

Vertical Knee Travel (Z-Axis) 16"

Vertical Spindle-Head Travel (Z-Axis) 7"

Spindle Taper #50 NSTD

(24) Spindle Speeds, Range 15 to 1500 RPM

(32) Longitudinal and Cross Feeds 3/8 to 90 IPM

(32) Vertical Knee Feeds, Range 1/8 to 30 IPM

(32) Vertical Head Feeds, Range 3/16 to 45 IPM

Power Rapid Traverse, Long & Cross 150 IPM

Power Rapid Traverse, Vertical Knee 50 IPM

Power Rapid Traverse, Spindle Head 75 IPM

Spindle Motor, Horsepower 30 HP

Feed Motor, Horsepower 3 HP

Floor Space Required, W x D 8'6" x 7'2"

Overall Height 8'

Weight, Approximately 12,500 LBS.


Specifications

ManufacturerKEARNEY & TRECKER
Model430 TF-17
ConditionUsed
Serial Number8-9549
Stock Number29662
