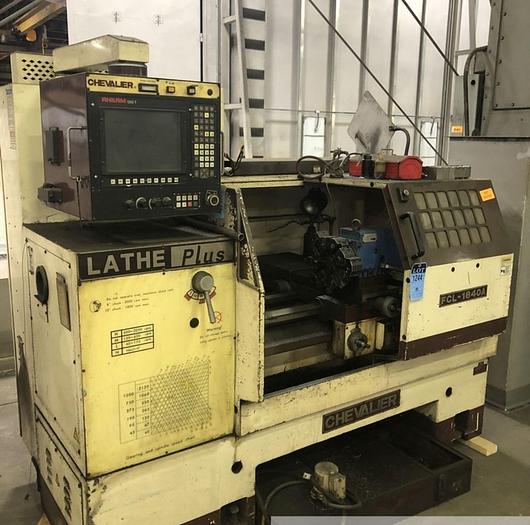

18" x 40" CHEVALIER "FCL-1840A LATHE PLUS" COMBINATION CNC/MANUAL LATHE

18" x 40" CHEVALIER "FCL-1840A LATHE PLUS" COMBINATION CNC/MANUAL LATHE

$7,950 (USD)

orCall +1 513-771-1952

Description

18" x 40" CHEVALIER "FCL-1840A LATHE-PLUS"

2-AXIS COMBINATION CNC/MANUAL LATHE

Serial No X1864009, Model FCL-1840A, Series Lathe Plus


EQUIPPED WITH:

Anilam #1200T CNC Controls

12" 3-Jaw Chuck w/Jaws

RTP63 8-Position Turret Attachment

Tailstock

Coolant System (Tank & Pump)


CATALOG SPECIFICATIONS:

Spindle Bore Diameter .......... 2.25" 58 MM

Swing Over Bed .......... 18" 460 MM

Swing Over Cross-Slide .......... 10" 250 MM

Distance Between Centers .......... 40" 1000 MM

X-Axis Travel, Maximum .......... 12" 25 MM

Z-Axis Travel, Maximum .......... 36" 914 MM

Spindle Speeds, Range .......... 40 to 2000 RPM

X-Axis Feeds, Range .......... 0 to 200 IPM

Z-Axis Feeds, Range .......... 0 to 200 IPM

Rapid Traverse, Rate ......0 to 200 IPM

Tailstock Quill Travel .......... 6" 150 MM

Tailstock Quill Diameter .......... 2.25" 58 MM

Tailstock Taper .......... 4 MT

Motor Rating .......... 10 HP 7.5 KW

Overall Dimensions, L x W .......... 114" x 67"

Overall Height .......... 60"

Weight Approximately .......... 5000 LBS


F.O.B. OUR WAREHOUSE


Specifications

ManufacturerCHEVALIER
ModelFCL-1840A
ConditionUsed
Serial NumberX1864009
Stock Number29693
