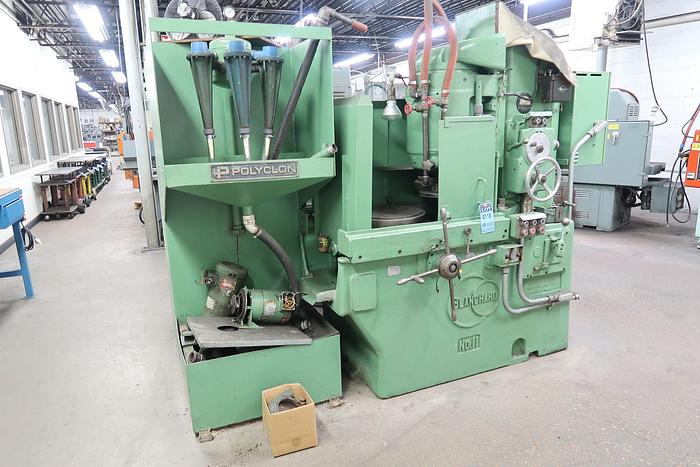

20" BLANCHARD "11-20" VERTICAL-SPINDLE ROTARY SURFACE GRINDER

20" BLANCHARD VERTICAL SPINDLE ROTARY SURFACE GRINDER

Serial No. 11202377, Model 11-20

EQUIPPED WITH:

20" Diameter Electro-Magnetic Chuck

Variable Neutrifier

Cylindrical Grinding Wheel

Rapid Traverse To Head

Load Meter

Trabon One-Shot Lube System

Polyclon Coolant Filtration System

CATALOG SPECIFICATIONS:

Magnetic Chuck, Diameter 20"

Swing Between Coolant-Guards 22"

Grinding Wheel, Diameter 11"

Grinding Wheel, Width 5"

Grinding Wheel, Hole Diameter 9"

Height Under Grinding Wheel, Maximum 9"

(4) Chuck Speeds, Range 15 to 64 RPM

Power Down Feeds, Range .003 to .070 IPM

Maximum Unbalanced Work Load 500 LBS.

Spindle Motor, Horsepower 15 HP

Overall Dimensions, L x W 72" x 42"

Maximum Overall Height 81"

Weight, Approximately 6500 LBS.

F.O.B. ON WAY IN
