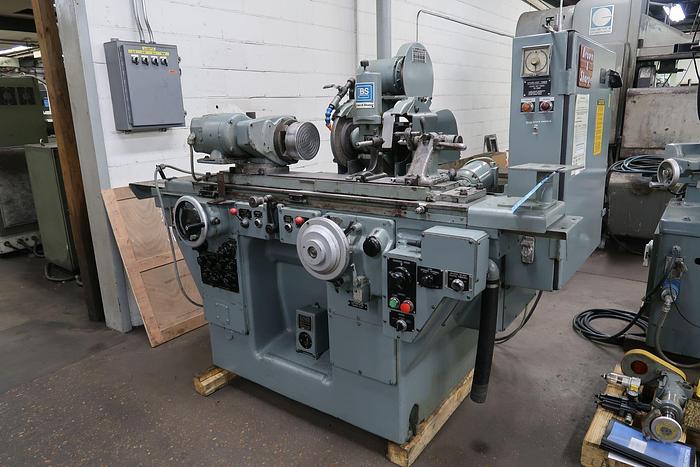

10" x 20" BROWN & SHARPE "1020U" UNIVERSAL CYLINDRICAL GRINDER w/INTERNAL ATTACHMENT

Sold

10" x 20" BROWN & SHARPE "1020U" UNIVERSAL CYLINDRICAL GRINDER w/INTERNAL ATTACHMENT

$9,950 (USD)

Description

10" x 20" BROWN & SHARPE UNIVERSAL CYLINDRICAL GRINDER

Serial No 521-1020-126, Model 1020U,


EQUIPPED WITH:

Internal Attachment

Magnetic Chuck Mounted On Workhead

4-Jaw Chuck - 3-Jaw Chuck

Table Mounted Wheel Dresser

Spark-Out Timer

Coolant Pump


CATALOG SPECIFICATIONS:

Swing Over Table, Maximum 10"

Grinding Diameter, Maximum 10"

Distance Between Centers, Nominal 20"

Distance Between Centers, Maximum 22"

Grinding Wheel Diameter, Standard 12"

Grinding Wheel Width, Range .375" to 1"

Grinding Wheel Hole Diameter 5"

Swivel Table, Scales For Angular Set 8-1/4 DEGREES

Swivel Table, Taper Per Foot 3.5"

(3) Grinding Wheel Speeds, Range 2100 to 2800 RPM

Workhead Spindle Speeds, Infinite Range 60 to 600 RPM

Table Longitudinal Feeds, Infinite 3 to 150 IPM

Wheelhead In-Feeds, Range .0001 to .003 IPR

Grinding Wheelhead Spindle Motor 2 HP/1730 RPM

Workhead Motor, Horsepower 1/4 HP

Hydraulic Motor, Horsepower 3/4 HP

Electrical System 220-440/3/60

Floor Space Required, L x D 8'8" x 6'5"

Overall Height 5'3"

Weight, Approximately 5100 LBS


F.O.B. OUR WAREHOUSE



Specifications

ManufacturerBROWN & SHARPE
Model102OU
ConditionUsed
Serial Number521-1020-126
Stock Number29716
