36" BLANCHARD "18-36" VERTICAL-SPINDLE ROTARY SURFACE GRINDER

Sold

36" BLANCHARD "18-36" VERTICAL-SPINDLE ROTARY SURFACE GRINDER

$14,500 (USD)

Description

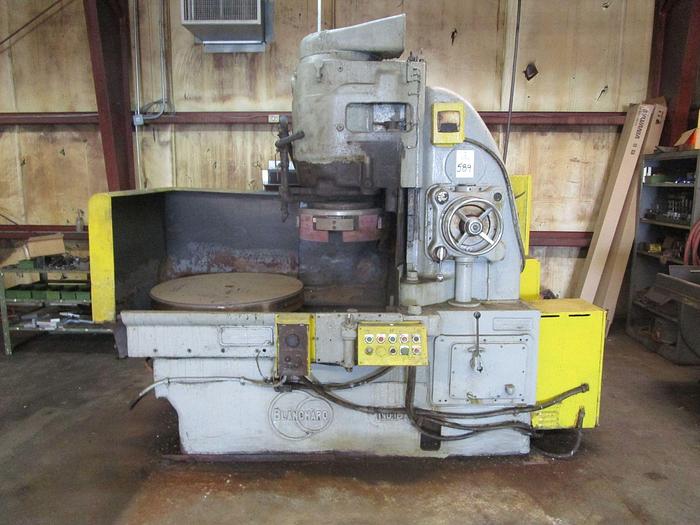

36" BLANCHARD VERTICAL-SPINDLE ROTARY SURFACE GRINDER

Serial No 5990, Model 18-36


EQUIPPED WITH:

36" Diameter Magnetic Chuck

Segmented Grinding Wheel

Load Meter

Coolant System (Built-In)




CATALOG SPECIFICATIONS:

Magnetic Chuck, Diameter 36"

Magnetic Chuck Work Load Capacity 3000 LBS

Height Under Grinding Wheel, Maximum 12"

Grinding Wheel Diameter, Maximum 18"

Grinding Wheel Speeds, Range 720 RPM

(6) Chuck Speeds, Range 6 to 33 RPM

Power Down Feeds, Range .004 to .080 IPM

Spindle Motor, Horsepower 35 HP

Overall Dimensions, W x D 9'4" x 5'5"

Weight, Approximately 12900 LBS


F.O.B. OUR WAREHOUSE



Specifications

ManufacturerBLANCHARD
Model18-36
ConditionUsed
Serial Number5990
Stock Number29731
