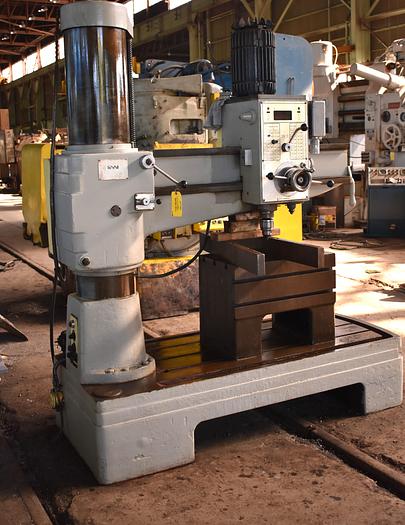

4'12" WILTON "1248" RADIAL ARM DRILL w/PLAIN BOX TABLE

4'12" WILTON "1248" RADIAL ARM DRILL w/PLAIN BOX TABLE

$4,950 (USD)

orCall +1 513-771-1952

Description

4'12" WILTON RADIAL DRILL

Model 1248,


EQUIPPED WITH:

Plain Box Table

Plain Type Base - Power Arm Elevation

Built-In Coolant System


CATALOG SPECIFICATIONS:

Arm Length .......... 4'

Column Diameter .......... 12"

Drilling Capacity, Steel .......... 1-3/8"

Drilling Capacity, C.I. .......... 1-3/4"

Horizontal Head Travel on Arm .......... 33"

Vertical Arm Travel on Column .......... 34"

Vertical Spindle Travel in Head .......... 10"

Quill Diameter .......... 3-1/8"

Spindle-Nose to Base, Minimum .......... 14"

Spindle-Nose to Base, Maximum .......... 48"

Base Working Surface, W x L .......... 32" x 50.5"

Spindle Taper .......... #4 MT

(12) Spindle Speeds, Range .......... 42 to 1750 RPM

(6) Spindle Feeds, Range .......... .002 to .0138 IPR

Motor, Horsepower .......... 3/2 HP

Elevation Motor, Horsepower .......... 3/4 HP

Weight, Approximately .......... 5500 LBS


F.O.B. OUR WAREHOUSE


Specifications

ManufacturerWILTON
Model1248
ConditionUsed
Stock Number29732
Arm Length4'
Column Diameter12"
Drilling Capacity, Steel1-3/8"
Drilling Capacity, C.I1-3/4"
Quill Diameter3-1/8"
Spindle-Nose to Base, Minimum14"
Spindle-Nose to Base, Maximum48"
Spindle Taper#4 MT
(12) Spindle Speeds, Range42 to 1750 RPM
(6) Spindle Feeds, Range002 to .0138 IPR
Motor, Horsepower3/2 HP
Elevation Motor, Horsepower3/4 HP
Weight, Approximately5500 LBS
