17" X 47" MORI-SEIKI PRECISION HIGH-SPEED

ENGINE LATHE

Serial No. 693, Model MS-1250

EQUIPPED WITH:

Threading

12" 4-Jaw Chuck - 8" 3-Jaw Chuck

Turret Depth Stop

Hardened & Ground Ways

Box Of Tooling

CATALOG SPECIFICATIONS:

Swing Over Bed Ways, Actual 17.13"

Swing Over Bed Ways, Rated

Swing Over Cross-Slide 9.75"

Distance Between Centers 47"

Hole Thru Spindle 2.04"

(12) Spindle Speeds, Range 32 to 1800 RPM

(40) Longitudinal & Cross Carriage Feeds .0018 to .025 IPR

Thread Changes Inches, Range 4 to 80 TPI

Cross-Slide Cross Feed Travel 9.625"

Compound Rest Travel 5.87"

Bed Face Width 13.75"

Tailstock, Spindle Taper #4 MT

Tailstock, Spindle Travel 6"

Floor Space Required, L x D 101" x 35"

Weight, Approximately 4750 LBS

F.O.B. OUR WAREHOUSE

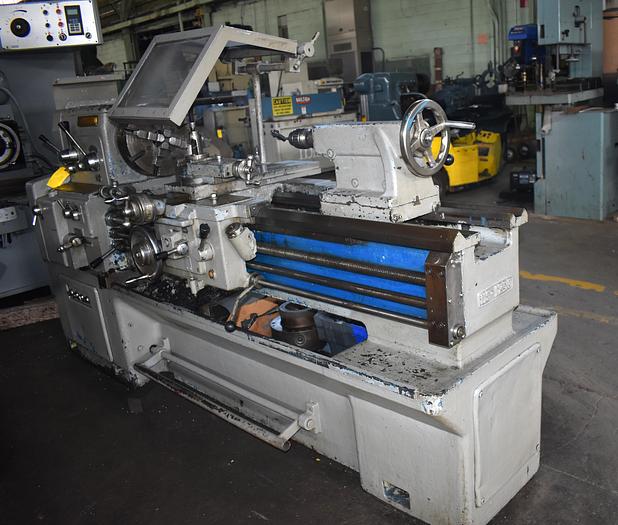

17" X 47" MORI SEKI "MS-1250" PRECISION HIGH-SPEED ENGINE LATHE
