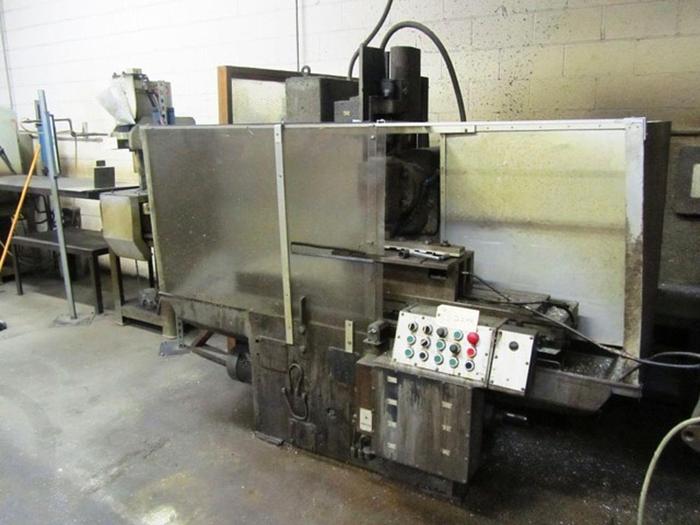

107-122 CINCINNATI MILACRON "POWERMATIC 100 RF" HORIZONTAL-SPINDLE PRODUCTION MILL w/VERTICAL HEAD ATTACHMENT

107-122 CINCINNATI-MILACRON "POWERMATIC 100 RF"

 HORIZONTAL-SPINDLE PRODUCTION MILL

W/VERTICAL HEAD ATTACHMENT

Serial No 11B11P1AHE-17, Series Powermatic 100 RF,

Model 107-122,

EQUIPPED WITH:

Vertical Head Attachment

Rise and Fall Head Travel

Outboard Arbor Support - Two Arbor Supports

Arbor - Some Change Gears

Bijur Automatic Lubrication System

CATALOG SPECIFICATIONS:

Table Dimensions (Overall) W x L .......... 12" x 54"

Table Working Surface, W x L .......... 12" x 54"

Table Longitudinal Travel (X-Axis) .......... 24"

Spindle-Head Vertical Travel (Y-Axis) .......... 11"

Quill Cross Adjustment (Z-Axis) .......... 3"

Spindle-Center to Table-Top, Minimum .......... 3.25"

Spindle-Center to Table-Top, Maximum .......... 14.25"

Quill Diameter .......... 6"

Spindle Nose Diameter .......... 5.06"

(16) Spindle Speeds, Range .......... 30 to 1200 RPM

Longitudinal Table Feeds, Range .......... 1 to 40 IPM

Vertical Spindle-Carrier Feeds .......... 1 to 40 IPM

Power Rapid Table Traverse .......... 300 IPM

Spindle Motor, Horsepower .......... 7.5 HP

Feed Drive Motor, Horsepower .......... 1.5 HP

Electrical System .......... 220-440/3/60

Floor Space Required, L x D .......... 7'7" x 5'6"

Overall Height .......... 6'

Weight, Approximately .......... 5700 LBS

F.O.B. OUR WAREHOUSE
