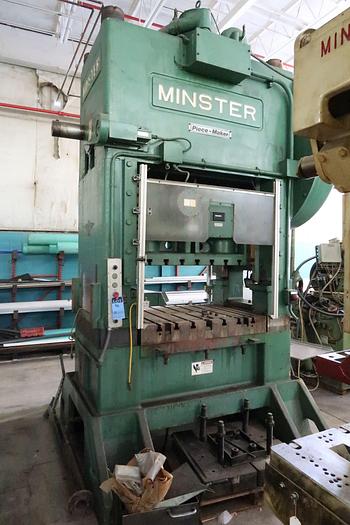

150 TON MINSTER "PIECE-MAKER" HIGH-SPEED FLYWHEEL STRAIGHT SIDE DOUBLE CRANK AUTOMATIC PRESS

Sold

150 TON MINSTER "PIECE-MAKER" HIGH-SPEED FLYWHEEL STRAIGHT SIDE DOUBLE CRANK AUTOMATIC PRESS

$124,500 (USD)

Description

150 TON MINSTER "PIECEMAKER" HIGH-SPEED

 FLYWHEEL DESIGN STRAIGHT SIDE DOUBLE

CRANK AUTOMATIC PRESS

New 1996, Serial No P2-100-29083, Model P2-150


EQUIPPED WITH:

Air Clutch & Brake w/Selector Controls

Air Counterbalance

Minster Pedestal Mounted Controls

4-Piece Tie Rod Construction

8-Point Hydrostatic Gibbing

6" T-Slotted Bolster Plate

Automatic Recirculating Lubrication System


CATALOGUE SPECIFICATIONS:

Tonnage Capacity .......... 150 TON

Stroke Length .......... 1.5"

Shut Height Over Bed, (SDAU) .......... 17.5"

Slide Adjustment .......... 4"

Slide Area, L-R x F-B .......... 48" x 23"

Bed Area, L-R x F-B .......... 48" x 40"

Opening In Bed, L-R x F-B .......... 38" x 18"

Distance Between Gibs .......... 50"

Strokes Per Minute, Variable .......... 70 to 400 SPM

Main Drive Motor Horsepower .......... 25 HP

Floor Space Overall, L-R x F-B .......... 104" x 75"

Overall Height, Approximately .......... 157"

Weight, Approximately .......... 47900 LBS



NOTE: The Minster Piece-Maker Was Designed To

Provide Extremely Accurate Alignment And Close

Clearances Required For Profitable High Speed

Automatic, Continuous Production With

Progressive Dies. Ideal For Parts Such As

Electrical Laminations, Small Intricate Parts For

Office Machines And Electronic Equipment,

Automotive Parts, Long Runs Or Short Runs.



F.O.B. OUR WAREHOUSE


Specifications

ManufacturerMINSTER
ModelP2-150
ConditionUsed
Serial Number29083
Stock Number29823
Tonnage Capacity150 TON
Stroke Length1.5"
Slide Adjustment4"
Distance Between Gibs50"
Strokes Per Minute, Variable70 to 400 SPM
Main Drive Motor Horsepower25 HP
Overall Height, Approximately157"
Weight, Approximately47900 LBS
