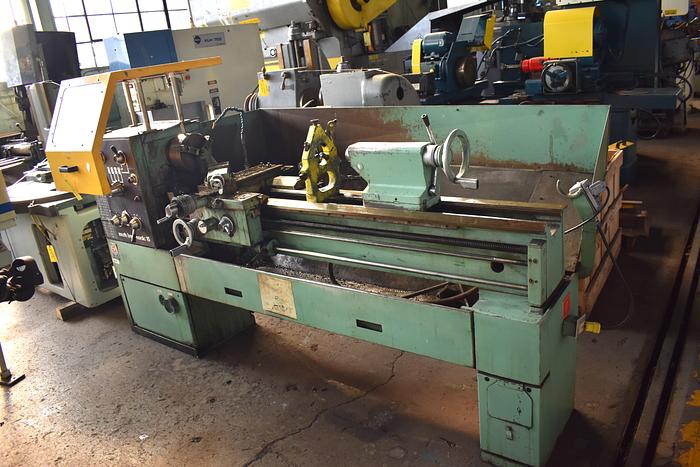

15" X 56" SOUTH BEND "NORDIC 15" ENGINE LATHE w/TAPER

15" X 56" SOUTH-BEND "NORDIC 15" GEARED HEAD

 ENGINE LATHE

Serial No. DN15770731N67, Model CL150E

 Series "Nordic 15"

EQUIPPED WITH:

Taper Attachment

8" 3-Jaw Chuck w/Jaws - Steady Rest

Geared Head w/Hardened & Ground Gears

Hardened & Ground Bed Ways

#D1-6" Cam-Lock Spindle Nose

Threading (Inch-Metric Full-Length Lead Screw)

Full Length Coolant-Chip Pan

CATALOG SPECIFICATIONS:

Swing Over Bed Ways, Rated .......... 15.25"

Swing Over Saddle Wings .......... 15"

Swing Over Cross-Slide .......... 8-3/4"

Distance Between Centers .......... 56"

Hole Thru Spindle .......... 2-1/32"

Cross-Slide Cross Feed Travel .......... 9-3/8"

Tool-Slide Travel .......... 4-3/4"

(16) Spindle Speeds, Range .......... 40 to 2000 RPM

(54) Longitudinal Carriage Feeds .......... .0025 to .152 IPR

(54) Cross-Slide Cross Feeds .......... .0012 to .076 IPR

(54) Thread Changes, U.S. Standard .......... 1-5/8 to 96 TPI

(41) Thread Changes, Metric Threads .......... .20 to 10mm

Motor, Horsepower .......... 7.5 HP

Weight, Approximately .......... 2350 LBS

F.O.B. OUR WAREHOUSE
