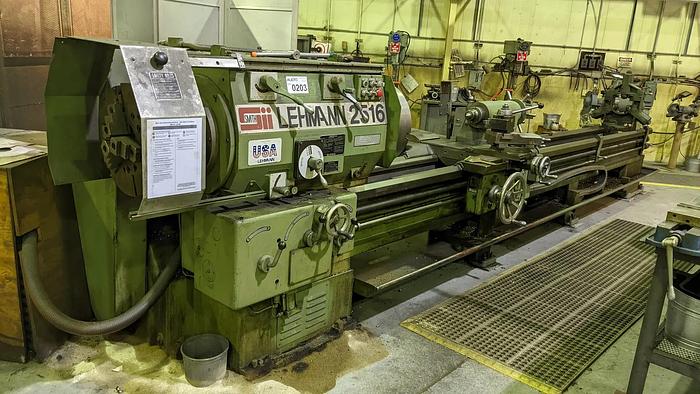

25/27.5" x 192" LEHMANN "HYDRATROL II 2516" DUAL-CHUCK HOLLOW-SPINDLE ENGINE LATHE W/TAPER

25"/27.5" x 192" LEHMANN "HYDRATROL II 2516"

HEAVY-DUTY DUAL-CHUCK HOLLOW-SPINDLE

 ENGINE LATHE w/TAPER ATTACHMENT

Serial No 240621 219, Model 2516, Series HYDRATROL II

EQUIPPED WITH:

Taper Attachment

Front & Rear Chucking Capability

6" Hole Thru Spindle - A2-11 Flanged Spindle Nose

(16) Forward And Reverse Speeds

Hydraulic Braking And Clutching For Smooth Operation

24" 4-Jaw Chuck - 20" 3- Jaw Chuck - 18" 3-Jaw Chuck

28" Face Plate - 17" Face Plate

(2) Steady Rests - (1) Follow Rest

Aloris Tool Post - Power Rapid Traverse

Full Length Coolant-Chip Pan and Coolant System

Lista Cabinet Full Of Tooling Including: Centers,

Tool Holders, Tool Post, Boring Bars, ETC

CATALOG SPECIFICATIONS:

Hole Thru Spindle .......... 6"

Swing Over Bed Ways, Rated .......... 25"

Swing Over Bed Ways, Actual .......... 27.5"

Swing Over Cross-Slide .......... 18.5"

Distance Between Centers .......... 192"

Tailstock, Spindle Diameter .......... 4.875"

Tailstock, Spindle Travel .......... 12"

Tailstock, Spindle Taper .......... #5 MT

(16) Spindle Speeds, Range .......... 22 to 832 RPM

(54) Carriage Longitudinal Feeds .......... .0055 to .327 IPR

(54) Thread Changes, Range .......... 5/8 to 36 TPI

Weight, Approximately .......... 21000 LBS

F.O.B. OUR WAREHOUSE
