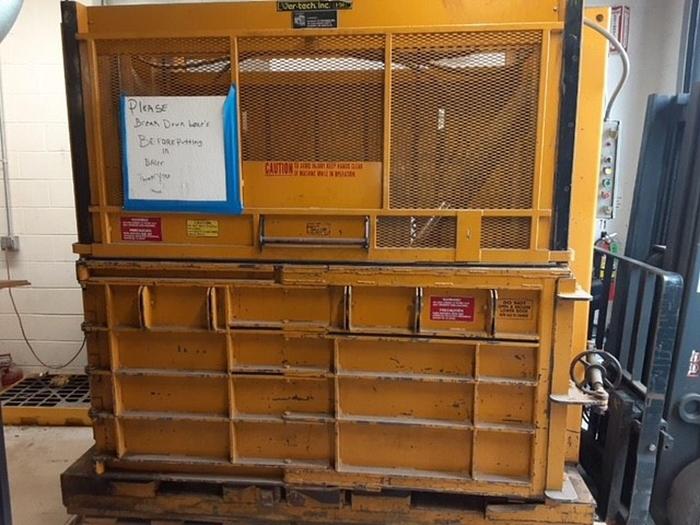

V72HS GPI/HARMONY TWIN-CYLINDER HEAVY-DUTY VERTICAL HYDRAULIC BALER

V72HS GPI/HARMONY TWIN-CYLINDER HIGH-SPEED

 HEAVY-DUTY VERTICAL HYDRAULIC BALER

Serial No 72127HS, Model V72HS,

EQUIPPED WITH:

Twin 5" Cylinders w/Heavy-Duty 3" Rods

Dual Hydraulic Ejection

Heavy-Duty 20 Horsepower Motor - Vane Type Pump

Unique Hydraulic Circuit For High Speed Applications

CATALOG SPECIFICATIONS:

Bale Size, W x D .......... 72" x 40"

Bale Size, Height .......... 39"

Bale Weight, Maximum .......... 1100 LBS

Cycle Time .......... 24 SECONDS

Loading Door Opening, L x W .......... 72" x 28"

Loading Door Height .......... 47"

Ram Pressure .......... 98,125 LBS

Main Cylinders, Diameter .......... 5"

Main Cylinders, Bore .......... 3"

Cylinder Stroke ..........    28"

Overall Dimensions, W x D .......... 110" x 51"

Overall Height .......... 111"

Motor Horsepower .......... 20 HP

Weight Approximately .......... 63400 LBS

NOTE: The Factory Advises That This Baler Is Both

Very High Speed And Heavy-Duty Because Of The

Two 5" Heavy-Duty Cylinders,The 20 HP Motor,

And The Regenerative Hydraulic System. This

Baler Is Ideal For Recycling Centers, Transfer

Stations, Super Markets, Hotels/Motels, Department

Stores, Manufacturing Facilities, Furniture Stores,

Military Bases, Industrial/Commercial Sites,

Shopping Centers, ETC.

F.O.B. OUR WAREHOUSE
