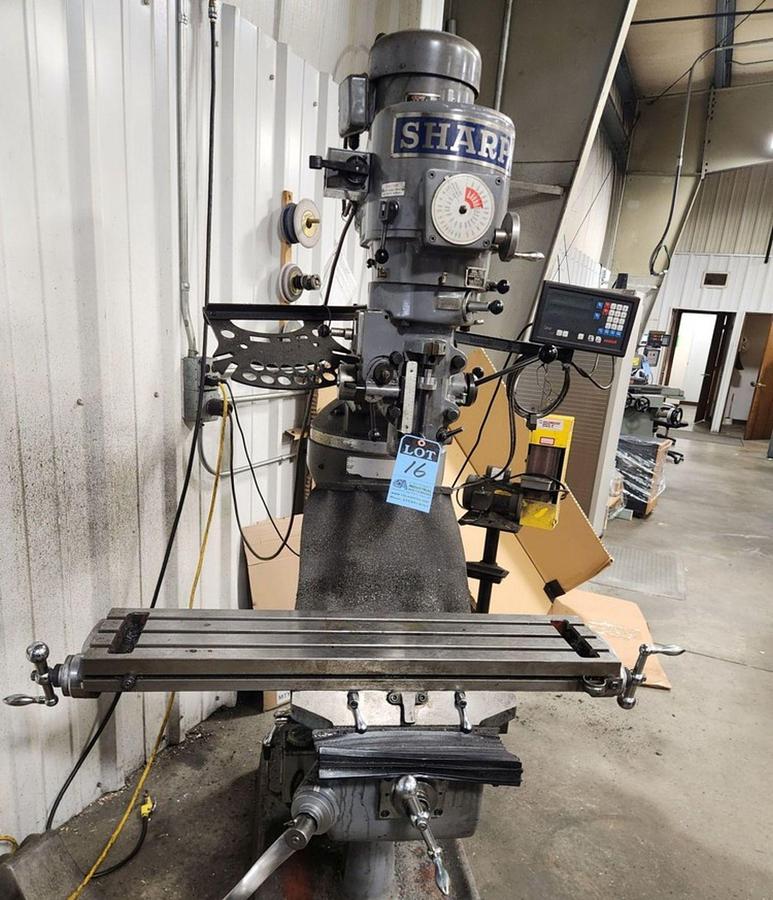

3 HP SHARP "LMV" VERTICAL TURRET MILL w/NEWALL 2-AXIS DIGITAL READOUTS - 9" x 42" TABLE

3 HP SHARP"LMV" VERTICAL TURRET MILL

Serial No 50121983, Model LMV

EQUIPPED WITH:

Newall 2-Axis Digital Readouts

3 HP Spindle Motor (Infinitely Variable Speeds)

Power Quill Feed

One-Shot Lubrication System

CATALOG SPECIFICATIONS:

Table Dimensions (Overall), W x L 9" x 42"

Table Longitudinal Travel (X-Axis) 30"

Saddle Cross Travel (Y-Axis) 12"

Knee Vertical Travel (Z-Axis) 16"

Quill Travel (Z-Axis) 5"

Ram Travel 12"

Spindle to Column, Range 6.75" to 18.5"

Spindle to Table, Minimum 6.75"

Spindle to Table, Maximum 18"

Spindle Taper #R8

Spindle Speeds Range, Variable 60 to 4500 RPM

(3) Vertical Feeds, Range .0015 to .006 IPR

Spindle Motor, Horsepower/RPM 3 HP/1730 RPM

Electrical System 220-440/3/60

Floor Space Required, W x D 5'1" x 5'3"

Overall Height 7'9"

Weight, Approximately 2400 LBS

F.O.B. ON WAY IN
