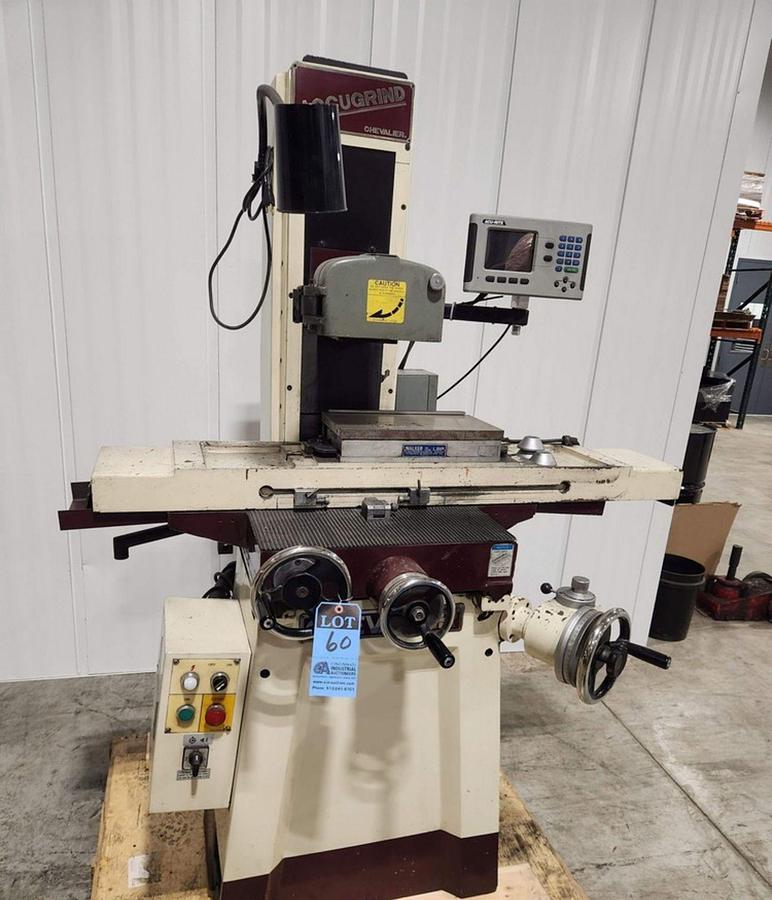

8" x 18" CHEVALIER "ACCUGRIND 818" HORIZONTAL-SPINDLE SURFACE GRINDER w/WALKER ELECTRO-MAGNETIC CHUCK - ACU-RITE DIGITAL READOUTS - MANUAL FEED

8" X 18" CHEVALIER "ACCUGRIND 818" HAND-FEED

 HORIZONTAL-SPINDLE SURFACE GRINDER

Serial No A6882003, Model Accugrind 818

EQUIPPED WITH:

Acu-Rite 2-Axis Digital Readouts

8" x 16" Walker Electro-Magnetic Chuck w/Controls

Automatic Lubrication System

CATALOG SPECIFICATIONS:

Table Working Surface, W x L 8" x 19"

Grinding Width Capacity, Maximum 9"

Grinding Length Capacity, Maximum 20"

Height Table to Spindle Center, Maximum 20"

Longitudinal Table Travel, Maximum   20"

Crossfeed Table Travel, Maximum   9"

Grinding Spindle Speed   3450 RPM

Grinding Wheel Diameter, Standard 8"

Grinding Wheel Width 0.5"

Grinding Wheel Hole Diameter 1.25"

Grinding Wheel Spindle Motor 2 HP

Electrical Requirements 220/440/3/60

Floor Space Required, L x W   69" x 54"

Overall Height   74"

Weight, Approximately 2310 LBS

NOTE: Replacement Price On This Grinder Is Over $24,000.00 With A

Chuck And Digital Readouts.

F.O.B. ON WAY IN
