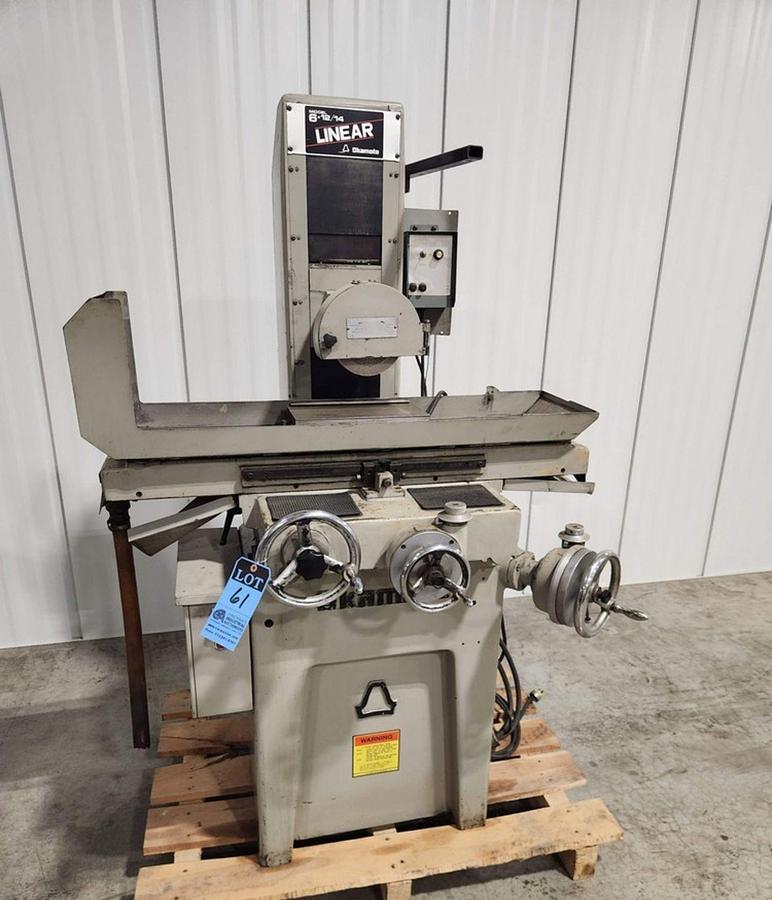

6" x 12" OKAMOTO "LINEAR 6-12/14" HORIZONTAL SPINDLE SURFACE GRINDER w/WALKER MAGNETIC CHUCK - MANUAL FEED

6" x 12" OKAMOTO "6-12/14 LINEAR" HAND-FEED

 HORIZONTAL-SPINDLE SURFACE GRINDER

Serial No 2386U, Model PFG612, Series Linear 6-12/14

EQUIPPED WITH:

6" x 12" Walker Electro-Magnetic Chuck w/Controls

One Shot Lubrication System

CATALOG SPECIFICATIONS:

Table Working Surface, W x L 6.2" x 14"

Grinding Width Capacity, Maximum 7.5"

Grinding Length Capacity, Maximum 14"

Height Table to Standard Wheel 14"

Table Load Capacity 108 LBS

Table Longitudinal, Manual 15"

Table Cross Travel 8"

Grinding Wheel Diameter, Standard 8"

Grinding Wheel Width, Standard 0.75"

Grinding Wheel Hole Diameter 1.25"

Grinding Spindle Speed 8000 SFPM

Grinding Wheel Spindle Motor 2 HP

Weight, Approximately 1650 LBS

F.O.B. ON WAY IN
