14 LITER (3.7 GALLON) ROSLER “FKS 02.1 E/SM COMPACT HIGH-ENERGY CENTRIFUGAL DISC FINISHING MACHINE W/SEPERATOR
Have one to sell?
ConditionUsed
1 available

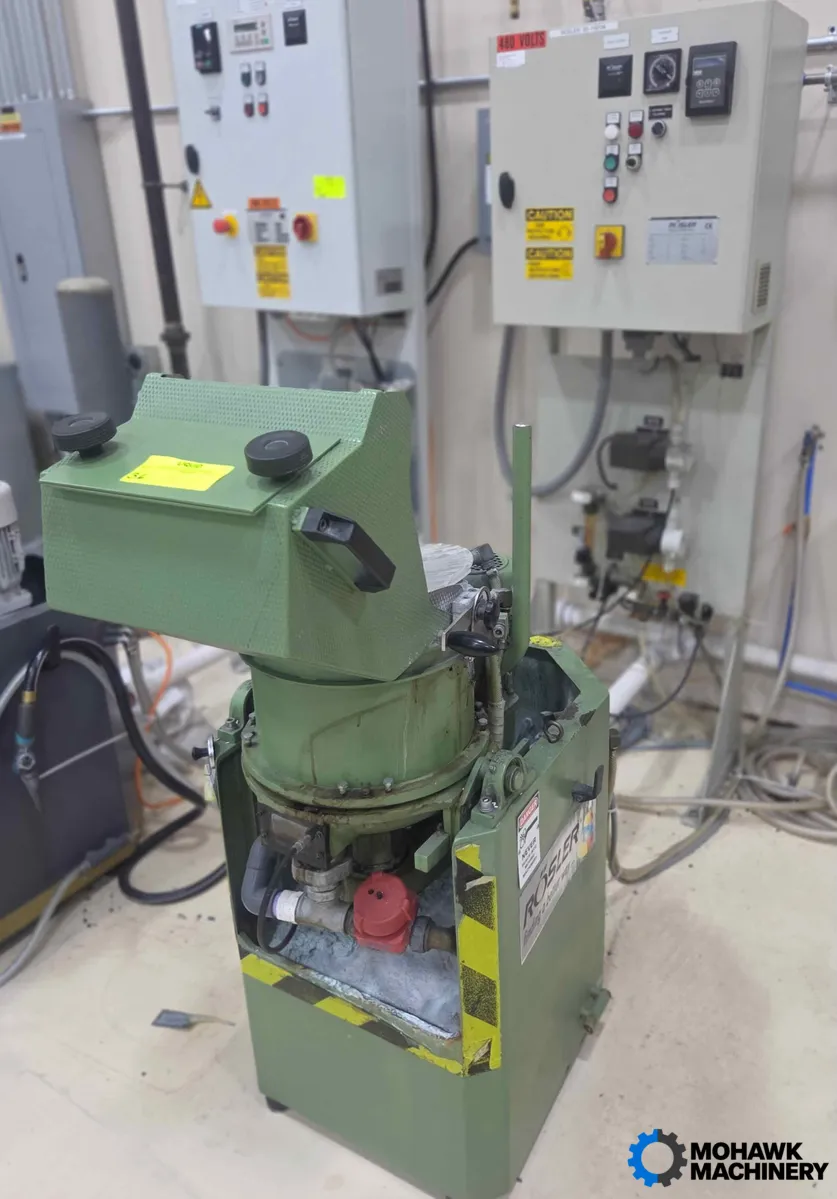

14 LITER (3.7 GALLON) ROSLER “FKS 02.1 E/SM” COMPACT HIGH-ENERGY CENTRIFUGAL DISC FINISHING MACHINE -W/SEPERATOR - 2004 - PLC Control - 288 MM (11.34”) Bowl -
14 LITER (3.7 GALLONS) ROSLER COMPACT HIGH-ENERGY CENTRIFUGAL DISC FINISHING MACHINE
New 2004, Serial No 33150/04, Model FKS 02.1 E/SM
EQUIPPED WITH:
PLC Control
Manual Separation
Hot Poured Polyurethane Lining
Adjustable Vibratory Motors
Manual Separation Gate Between Processing Bowl
And Screening Unit.
CATALOG SPECIFICATIONS:
Gross Operating Volume 14 LITERS 3.7 GALLONS
Chamber/Work Volume, Approximately 0.2 FT3
Rotary Spinner Drive Power 0.75 KW 1 HP
Processing Bowl Diameter 288 MM 11.34”
Discharge Height w/Screening Unit 538 MM 21.18”
Screening Area, L x B 365 MM x 254 MM
Screening Area, L x B 14.37” x 10”
Overall Dimensions, L x W 1305 MM x 551 MM
Overall Dimensions, L x W 51.38” x 21.69”
Overall Height 945 MM 37.20”
NOTE: This Compact High-Energy Centrifugal Disc Finishing
Machine Is Designed For Intense Deburring, Radiusing,
And Polishing Of Very Small Workpieces Like Compression
Screws, Dental Components, Micro-Finishing, Including
Medical Implants And Screws.
F.O.B. ON WAY IN
14 LITER (3.7 GALLON) ROSLER “FKS 02.1 E/SM” COMPACT HIGH-ENERGY CENTRIFUGAL DISC FINISHING MACHINE -W/SEPERATOR - 2004 - PLC Control - 288 MM (11.34”) Bowl -
Imperial
| Chamber Size | 0.2 ft³ |
| Power | 1 hp |
| Control | CNC (PLC Control) |
| Dimensions | 52” x 22” x 38”H |
14 LITER (3.7 GALLONS) ROSLER COMPACT HIGH-ENERGY CENTRIFUGAL DISC FINISHING MACHINE
New 2004, Serial No 33150/04, Model FKS 02.1 E/SM
EQUIPPED WITH:
PLC Control
Manual Separation
Hot Poured Polyurethane Lining
Adjustable Vibratory Motors
Manual Separation Gate Between Processing Bowl
And Screening Unit.
CATALOG SPECIFICATIONS:
Gross Operating Volume 14 LITERS 3.7 GALLONS
Chamber/Work Volume, Approximately 0.2 FT3
Rotary Spinner Drive Power 0.75 KW 1 HP
Processing Bowl Diameter 288 MM 11.34”
Discharge Height w/Screening Unit 538 MM 21.18”
Screening Area, L x B 365 MM x 254 MM
Screening Area, L x B 14.37” x 10”
Overall Dimensions, L x W 1305 MM x 551 MM
Overall Dimensions, L x W 51.38” x 21.69”
Overall Height 945 MM 37.20”
NOTE: This Compact High-Energy Centrifugal Disc Finishing
Machine Is Designed For Intense Deburring, Radiusing,
And Polishing Of Very Small Workpieces Like Compression
Screws, Dental Components, Micro-Finishing, Including
Medical Implants And Screws.
F.O.B. ON WAY IN
