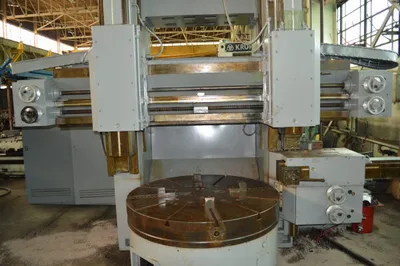

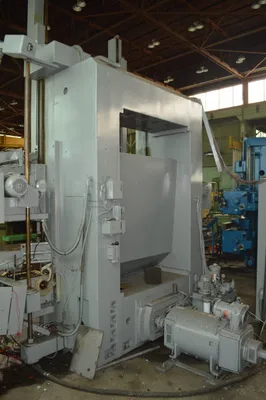

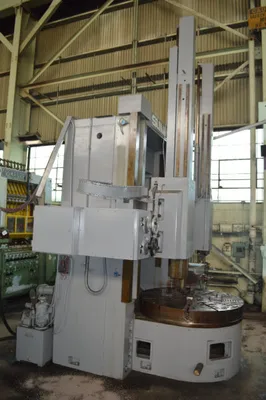

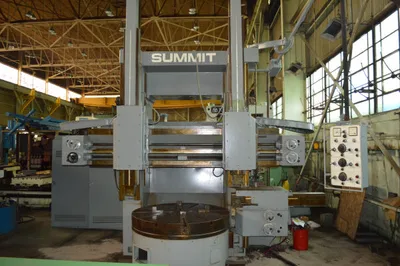

59" SUMMIT VERTICAL BORING MILL w/(2) SWIVELING RAM HEADS & 4-JAW FACEPLATE

Table Diameter 59"

Swing Maximum, w/o Side Head 70"

Swing Maximum, w/Side Head 65"

Height Under Cross-Rail, Maximum 47.25"

Cross-Rail Travel, Vertical 39"

Ram-Heads Travel, Vertical 33.5"

Ram-Heads Swivel, Degrees 35-DEGREES

Side-Head Travel, Vertical 45"

Side-Head Travel, Horizontal 26.5"

(18) Table Speeds, Range 4 to 165 RPM

Feeds, Range .05 to .50 IPR

Cross-Rail Speed 14 IPM

Rapid Traverse Rate 98 IPM

Main Motor, Horsepower 40 HP

Cross-Rail Motor, Horsepower 5.5 HP

Side-Head Rapid Motor, Horsepower 3 HP

NOTE: THIS MACHINE HAS ELECTRICAL PROBLEMS

AND THE SIDE HEAD IS INOPERABLE. SELLING AS IS.

PRICE: F.O.B. OUR WAREHOUSE AS IS
Table diameter: 59"
Swing maximum, w/o side head: 70"
Swing maximum, w/side head: 65"
Height under cross-rail, maximum: 47.25"
Cross-rail travel, vertical: 39"
Ram-heads travel, vertical: 33.5"
Ram-heads swivel, degrees: 35-DEGREES
Side-head travel, vertical: 45"
Side-head travel, horizontal: 26.5"
(18) table speeds, range: 4 TO 165 RPM
Feeds, range: .05 TO .50 IPR
Cross-rail speed: 14 IPM
Rapid traverse rate: 98 IPM
Main motor, horsepower: 40 HP
Cross-rail motor, horsepower: 5.5 HP
Side-head rapid motor, horsepower: 3 HP
