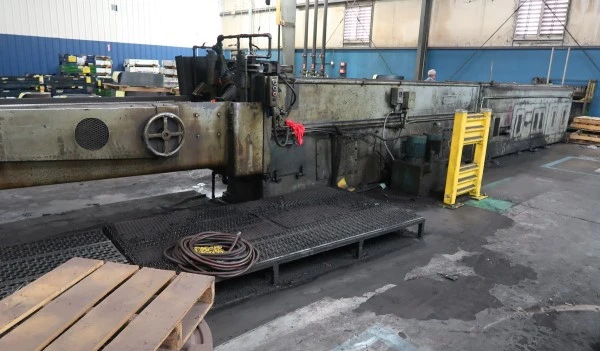

37.5 TON LAPOINTE “HP75SPEC” EXTRA-LONG HYDRAULIC HORIZONTAL BROACH w/120” STROKE & TOOLING

37.5 TON LAPOINTE HYDRAULIC HORIZONTAL BROACH
SERIAL NO 41102, MODEL HP75SPEC

EQUIPPED WITH:
Retriever
EXTRA LONG STROKE
30 HP HYDRAULIC UNIT
HARDENED STEEL WAYS
AUTOMATIC LUBE SYSTEM
COOLANT SYSTEM (BUILT-IN)
LARGE QUANTITY OF TOOLING
NO PIT REQUIRED

CATALOG SPECIFICATIONS:
Tonnage Capacity 37.5 TON
Stroke Length, Maximum 120"
Broaching Speeds, Variable Range 0 to 20 FPM
Broach Return Speed, Maximum 100 FPM
Spindle Motor, Horsepower/RPM 30 HP/1175 RPM
Electrical System 220-440/3/60
Floor Space Required, L x D 39' x 4'"
Weight, Approximately 25000 LBS

PRICE: F.O.B. OUR WAREHOUSE
Tonnage capacity: 37.5 TON
Stroke length, maximum: 120"
Broaching speeds, variable range: 0 TO 20 FPM
Broach return speed, maximum: 100 FPM
Spindle motor, horsepower/rpm: 30 HP/1175 RPM
Electrical system: 220-440/3/60
Floor space required, l x d: 39' X 4'"
Weight, approximately: 25000 LBS
