30" SCHERR-TUMICO "22-2500" CNC OPTICAL COMPARATOR w/FAGOR DIGITAL READOUTS - SURFACE ILLUMINATION - (2) LENS
Have one to sell?
$6,950.00 USD
ConditionUsed
1 available

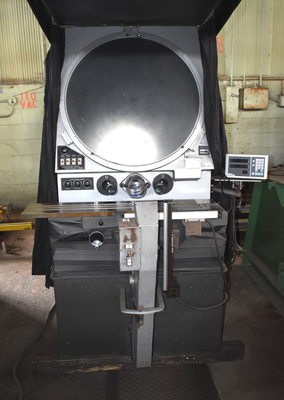

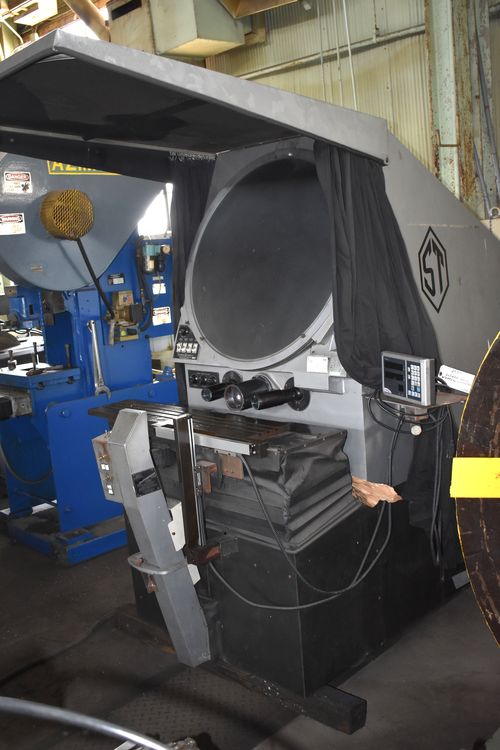

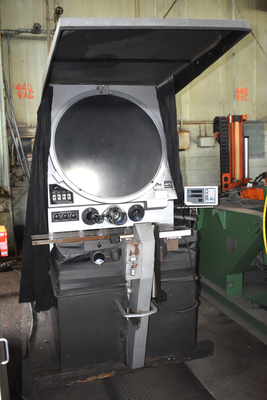

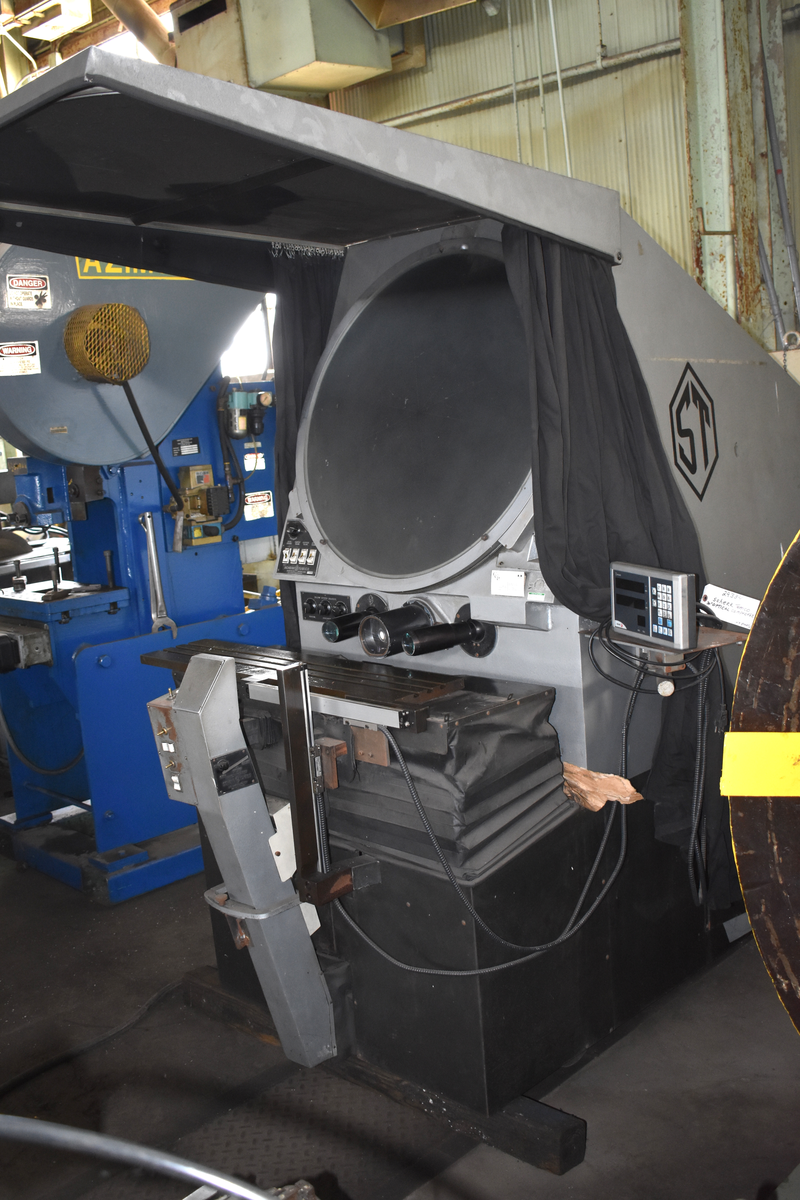

30" SCHERR-TUMICO #22-2500 OPTICAL COMPARATOR
SERIAL NO 570, MODEL #22-2500
FAGOR 2-AXIS DIGITAL READOUTS
SURFACE ILLUMINATION
PROFILE ILLUMINATION - SCALE ILLUMINATION
POWER HORIZONTAL & ROTARY ADJUSTMENTS (VARIABLE SPEED)
POWER VERTICAL TABLE ELEVATION (VARIABLE SPEED)
LIGHT SCREEN W/CURTAIN - TELECENTRIC STOP (ADJUSTABLE)
10X & 20X LENSES
SCREEN DIAMETER 30"
TABLE DIMEMSIONS W X L 8" X 35"
MEASURING RANGE, HORIZONTAL 12"
MEASURING RANGE, VERTICAL 9"
WORK LOAD CAPACITY, MAXIMUM 500LBS
FOCUS TRAVEL MEASURING RANGE 3"
FOCAL PLANE TO FRONT MIRROR HOUSING 6"
MEASURING RANGE, ANGULAR 360-DEGREES
ELECTRICAL SYSTEM 115 VOLT
FLOOR SPACE REQUIRED, 3' X 8'
WEIGHT, APPROXIMATELY 1700 LBS
PRICE: F.O.B. OUR WAREHOUSE
Screen diameter: 30"
Table dimensions, w x l: 8" X 35"
Measuring range, horizontal: 12"
Measuring range, vertical: 9"
Work load capacity, maximum: 500 LBS
Focus travel measuring range: 3"
Focal plane to front mirror housing: 6"
Measuring range, angular: 360-DEGREES
Electrical system: 115 VOLT
Floor space required, w x d: 3' X 8'
Weight, approximately: 1700 LBS
