40 TON AMERICAN “H40-90” CNC HYDRAULIC HORIZONTAL BROACH w/ALLEN BRADLE PLC - 90” STROKE - RETREIVER - PULLER - OUTER SUPPORT - 50 HP HYDRAULIC MOTOR

40 TON AMERICAN CNC HYDRAULIC HORIZONTAL BROACH
NEW 2003, SERIAL NO 96148, MODEL H40-90

EQUIPPED WITH:
ALLEN BRADLEY PLC PANEL VIEW 600 TOUCH SCREEN CONTROL
AMERICAN OUTER SUPPORT
AMERICAN AUTOMATIC BCT PULLER
AMERICAN AUTOMATIC BCT RETRIEVER
HYDRAULIC OIL COOLING SYSTEM
COOLANT FILTRATION SYSTEM
MAGNETIC CHIP CONVEYOR

CATALOGUE SPECIFICATIONS:
Tonnage Capacity, Normal 40 TON
Tonnage Capacity, Maximum 47 TON
Stroke Length, Maximum 90"
Face Plate Width 28"
Face Plate Bore 12"
Clearance Between Ways 14"
Broaching Speeds Variable, Range 0 to 30 FPM
Broach Return Speed, Maximum 60 FPM
Work Height 37"
Hydraulic Motor, Horsepower 50 HP
Floor Space Required, L x D 31' x 6'
Overall Height 5'2"
Weight, Approximately 22700 LBS

NOTE: REPLACEMENT PRICE IS OVER $400,000.00 WITH

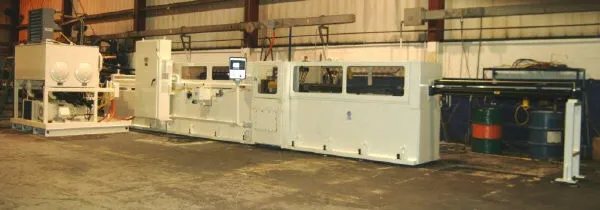

TOOLING. FIRST PHOTO IS ORIGINAL FACTORY
PHOTO OF ACTUAL MACHINE. WE ARE SELLING AS IS.

PRICE: F.O.B. OUR WAREHOUSE
Tonnage capacity, normal: 40 TON
Tonnage capacity, maximum: 47 TON
Stroke length, maximum: 90"
Face plate width: 28"
Face plate bore: 12"
Clearance between ways: 14"
Broaching speeds variable, range: 0 TO 30 FPM
Broach return speed, maximum: 60 FPM
Work height: 37"
Hydraulic motor, horsepower: 50 HP
Floor space required, l x d: 31' X 6'
Overall height: 5'2"
Weight, approximately: 22700 LBS
